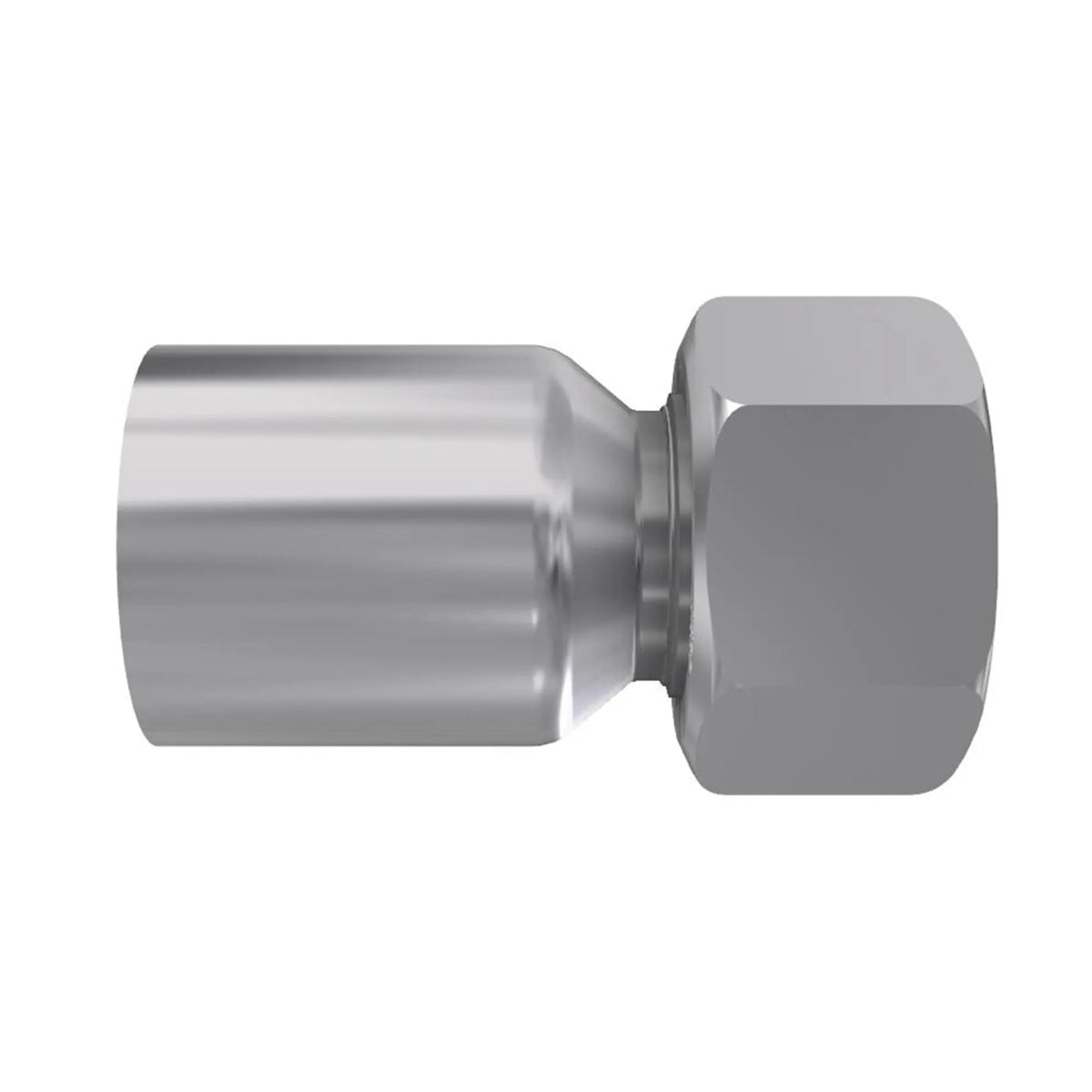

SKU:1CA56-10-6
10 mm | DIN | Light | Straight Female | Hose 3/8" | Steel | 400 Bar | 56 Series | O-ring
Availability
+ 3 days
Availability
Inventory
+ 3 days lead time
Express delivery in 1–2 business days is available for the entire quantity. For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Application
Medium Pressure Hydraulics, Agriculture Equipment, Construction Equipment, Material Handling, Machine Tools
Body Material
Steel
Brand
Parker
Coating
Chromium 6 Free-plated
Connection 1 size
9.5 mm Hose I.D., 3/8 inch Hose I.D., -6 (Size)
Connection 1 type
Hose
Connection 2 size
M16x1.5 mm Thread
Connection 2 type
Female, Metric L, Swivel, 24° Cone (with O-Ring)
Connection length
22.4 mm (see drawing legend B)
Division
Polymer Hose Division Europe
Division (facet only)
Polymer Hose Division Europe
Division id
687513
Fitting length
47.6 mm (see drawing legend A)
Industry
Industrial Manufacturing Equipment, Off-road Machinery, Transportation
Maximum operating pressure
40.0 MPa, 400 bar
Port type
DKOL
Product series
56 Series Metric Fittings
Region
EU
Shape
Straight
Specifications met
ISO 12151-2-SWS-L
Technology
Fluid & Gas Handling
Url
Configuration
Hose to Port
Product type
Hose Fittings
For fluid type
Chemicals, Air, Water, Oil, Hydraulic Fluids
