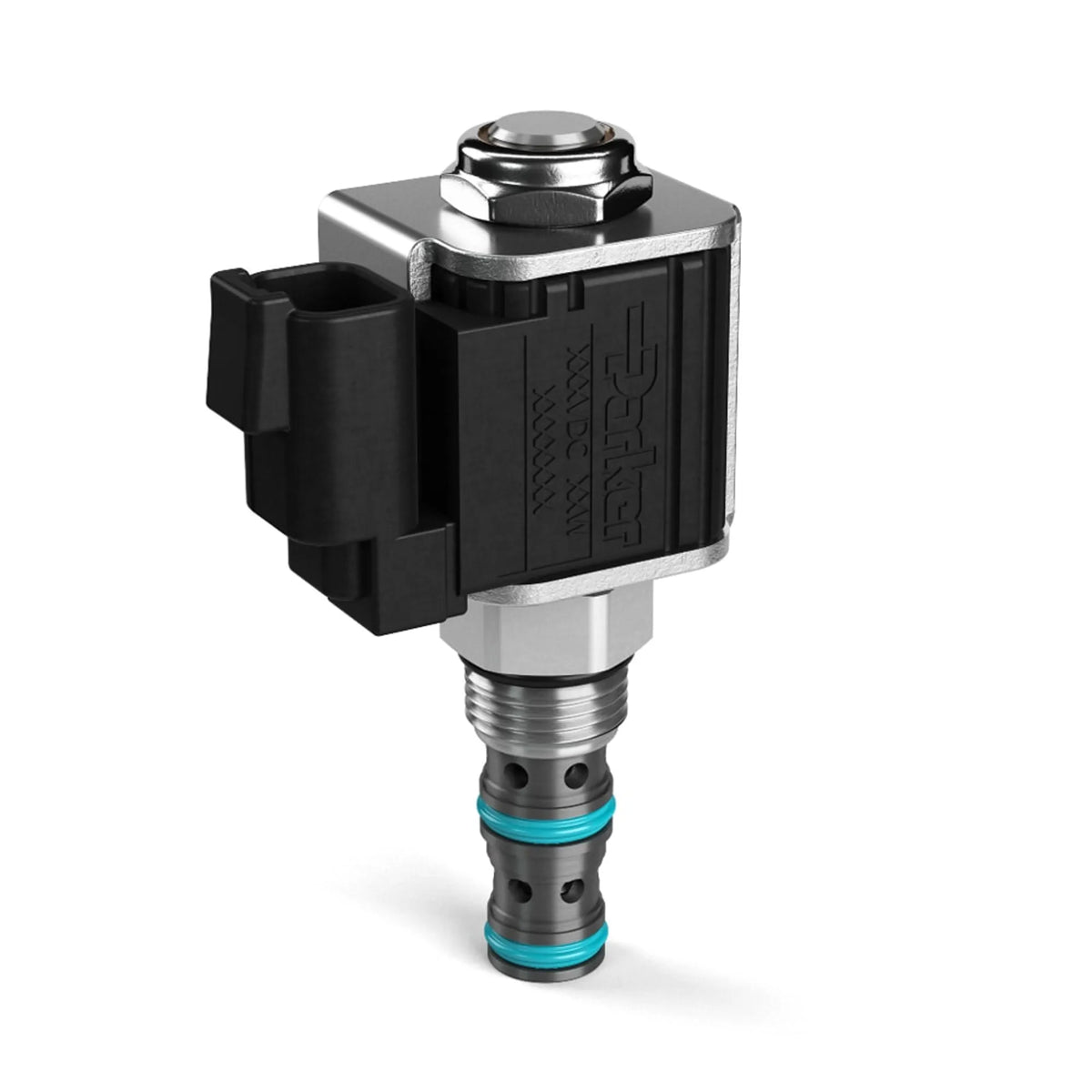

SKU:DSL083A
2P3W SPOOL SOLENOD VALV CODE A
Availability
+ 8 days
Availability
Inventory
+ 8 days lead time
Express delivery in 1–2 business days is available for part of this quantity. For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Division
Hydraulic Valve Systems Division
Division id
687505
Maximum operating pressure
250 bar, 3600 psi
Product series
3 Way Spool Type Solenoid Valve
Region
NA
Url
Actuation type
Electrical
Configuration
Normally Closed, Normally Open, Selector
Flow direction
2-1 De-energized, 3-1 Energized
Maximum flow rate
13.2 L/min, 3.5 gal/min
Maximum operating temperature
+93 °C, +200 °F
Minimum operating temperature
-37 °C, -35 °F
Mounting type
Screw in cartridge valve
Operation type
Solenoid operated
Seal material
D-Ring (Standard)
Weight
0.13 kg, 0.28 lb
Flow rate
8.4, 13.2 L/min, 2.25, 3.5 gal/min
Function
3-way
Operating temperature
-37 to +93 °C, -35 to +200 °F
For fluid type
Mineral-based or synthetic hydraulic fluids
No specifications found.
