SKU:1EB46-12-12

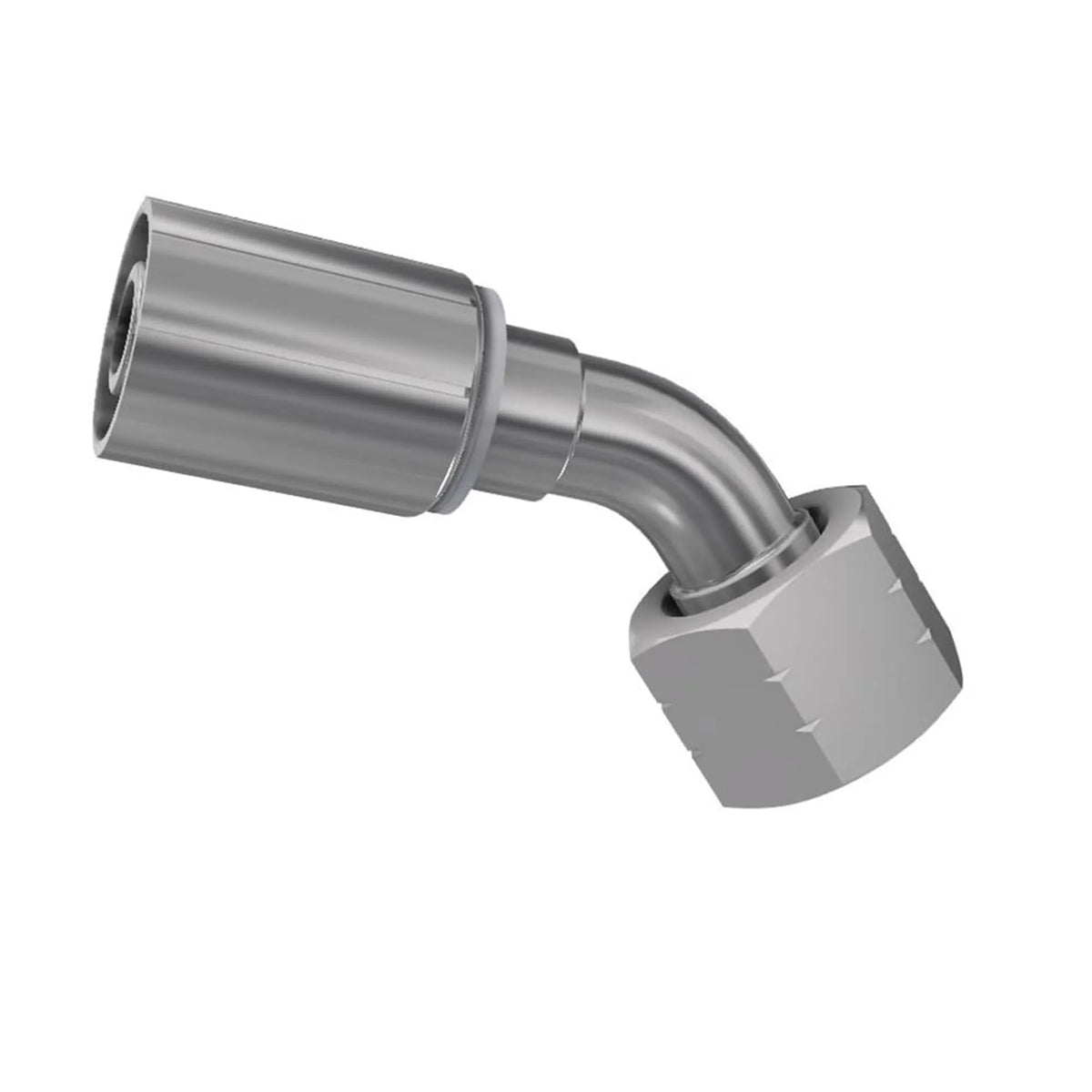

3/4" BSP SWEPT 45 DN20 ZJ
Availability
+ 3 days
Availability
Inventory
+ 3 days lead time
Express delivery in 1–2 business days is available for the entire quantity. For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Application
Hydraulics
Body Material
Steel
Brand
Parker
Coating
Zinc-Nickel
Connection 1 size
19.1 mm Hose I.D., -12 (Size), 3/4 inch Hose I.D.
Connection 1 type
Hose
Connection 2 size
3/4"-14 inch Thread
Connection 2 type
Female, 60° Cone, Swivel, BSP Parallel Pipe
Connection length
63 mm (see drawing legend B)
Division
Polymer Hose Division Europe
Division (facet only)
Polymer Hose Division Europe
Division id
687513
Fitting length
89 mm (see drawing legend A)
Industry
Industrial Manufacturing Equipment, Transportation, Off-road Machinery
Maximum operating pressure
42.0 MPa, 420 bar
Port type
DKOR
Product series
Parkrimp Medium Pressure Fittings 46 Series
Region
EU
Shape
Elbow 45°
Specifications met
BS 5200, ISO 12151-6
Technology
Fluid & Gas Handling
Url
No specifications found.
