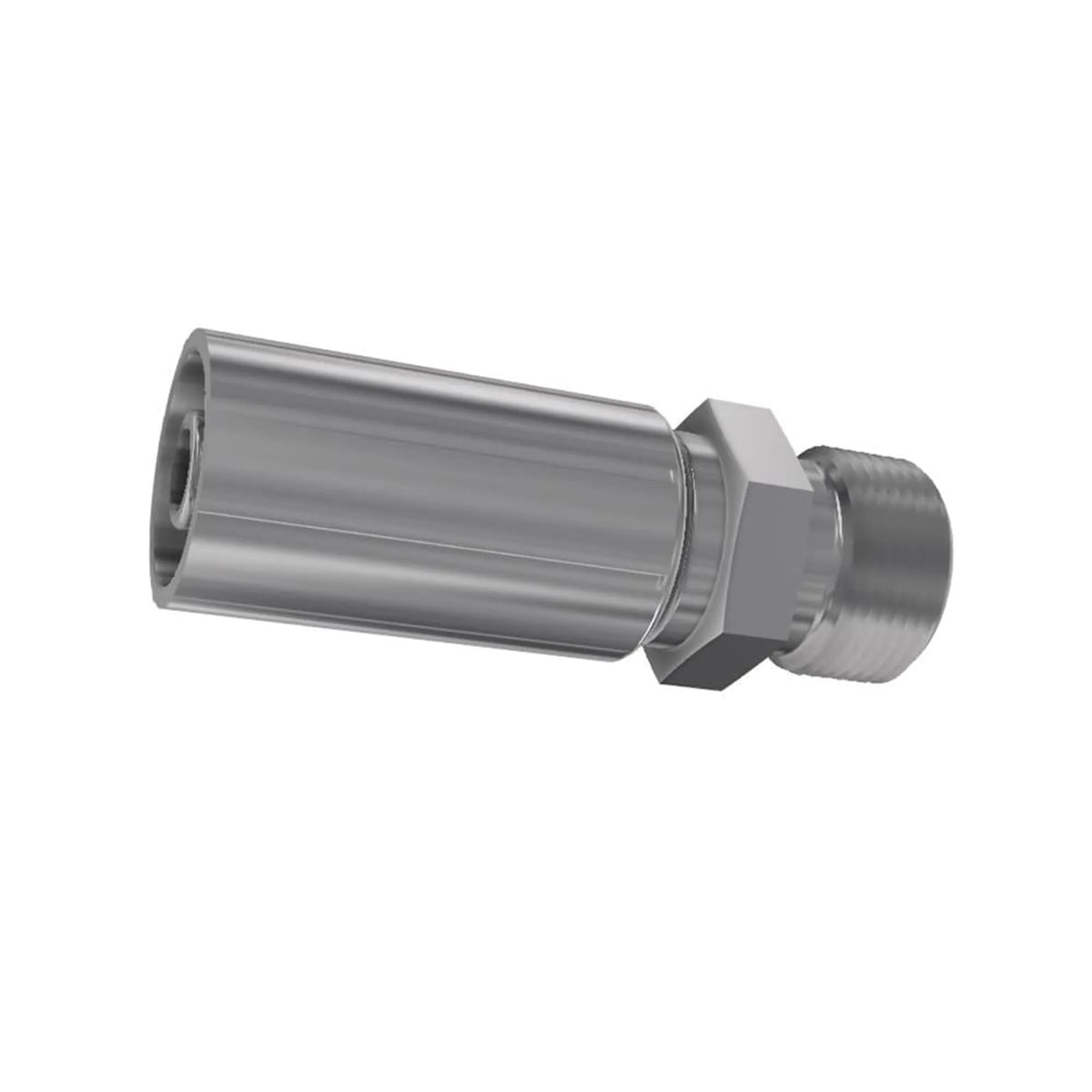

SKU:1D248-6-4
6 mm | DIN | Heavy | Straight Male | Hose 1/4" | Steel | 630 Bar | 48 Series
Availability
In stock
Availability
Inventory
Available for direct delivery or pickup
Express delivery in 1–2 business days is available for . For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Application
Hydraulics
Body Material
Steel
Brand
Parker
Coating
Chromium 6 Free-plated
Connection 1 size
6.4 mm Hose I.D., 1/4 inch Hose I.D., -4 (Size)
Connection 1 type
Hose
Connection 2 size
M14x1.5 mm Thread
Connection 2 type
Male, 24° Cone, Rigid, Metric S
Connection length
24 mm (see drawing legend B)
Division
Polymer Hose Division Europe
Division (facet only)
Polymer Hose Division Europe
Division id
687513
Fitting length
48 mm (see drawing legend A)
Industry
Industrial Manufacturing Equipment, Transportation, Off-road Machinery
Maximum operating pressure
63.0 MPa, 630 bar
Port type
DKOS
Product series
Parkrimp Medium Pressure Fittings 48 Series
Region
EU
Shape
Straight
Specifications met
ISO 12151-2-S-S
Technology
Fluid & Gas Handling
Url
Configuration
Hose to Port
Product type
Hose Fittings
For fluid type
Hydraulic Fluids, Water, Air, Coolants (Water-Glycol), Mineral Hydraulic Oil
Product style
-
Hose inside diameter
-4
Port size
6 mm
No specifications found.
