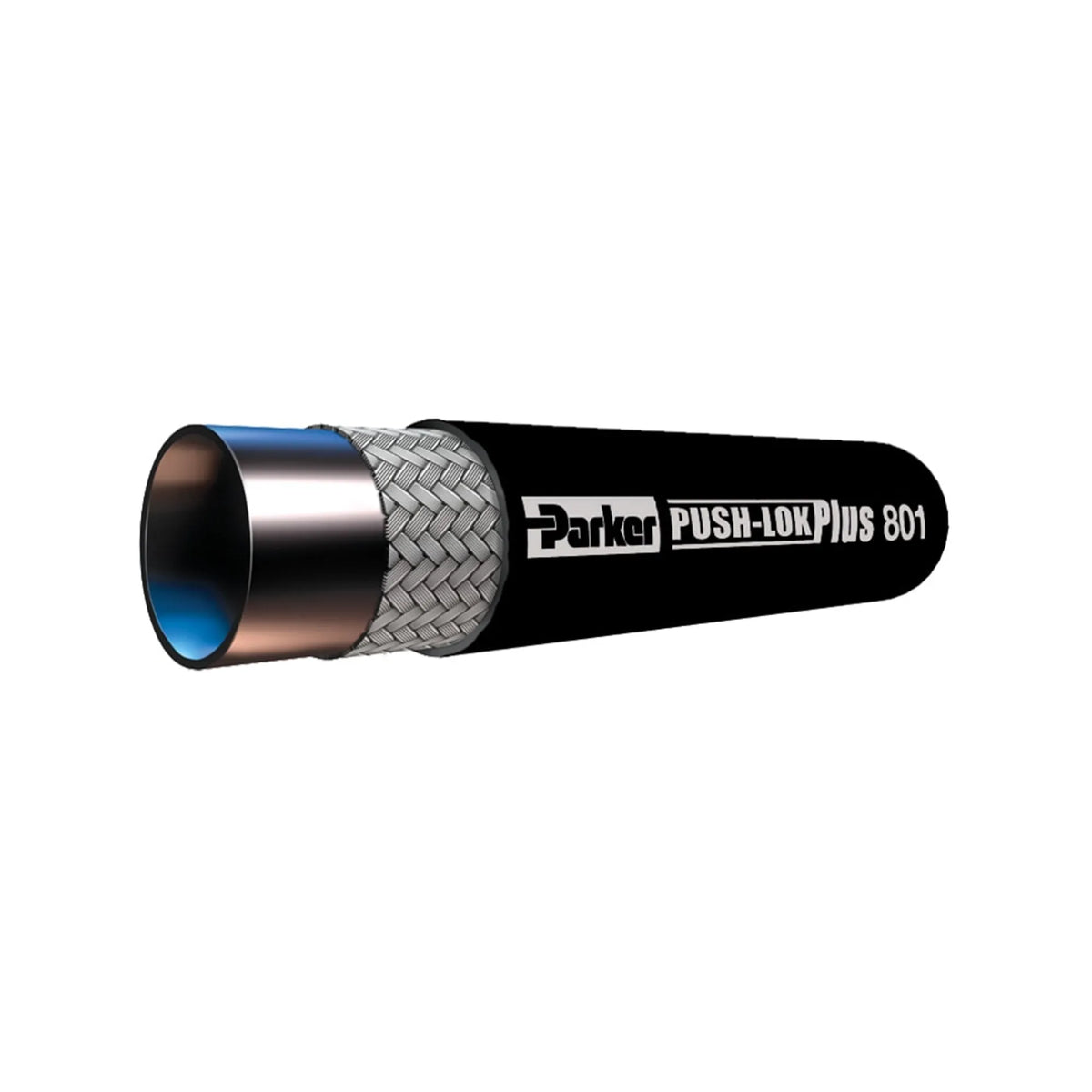

SKU:801PLUS-12-BLK-RL
801PLUS-12-BLK-RL
Availability
+ 8 days
Availability
Inventory
+ 8 days lead time
Express delivery in 1–2 business days is available for part of this quantity. For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Application
Low Pressure Hydraulics, Paper & Pulp for water/air applications
Brand
Parker
Division
Polymer Hose Division Europe
Division id
687513
Industry
General Industrial, Marine, Transportation
Maximum operating pressure
2.1 MPa, 21 bar, 300 psi
Product series
Push-Lok Low Pressure Hose 801PLUS
Region
EU
Specifications met
Parker Specifications
Technology
Fluid & Gas Handling
Url
Maximum operating temperature
100 °C (Water 85°C / Air 70°C), 212 °F (Water 185°F / Air 158°F)
Minimum operating temperature
-40 °C
Weight
0.36 kg/m, 0.24 lb/ft
Product type
Push-Lok and Push-on Hoses, Push-Lok and Push-on Hoses (Push-Lok Plus)
Outside diameter
1.012 inch, 25.7 mm
Hose inside diameter
19.1 mm - 3/4 inch
No specifications found.
