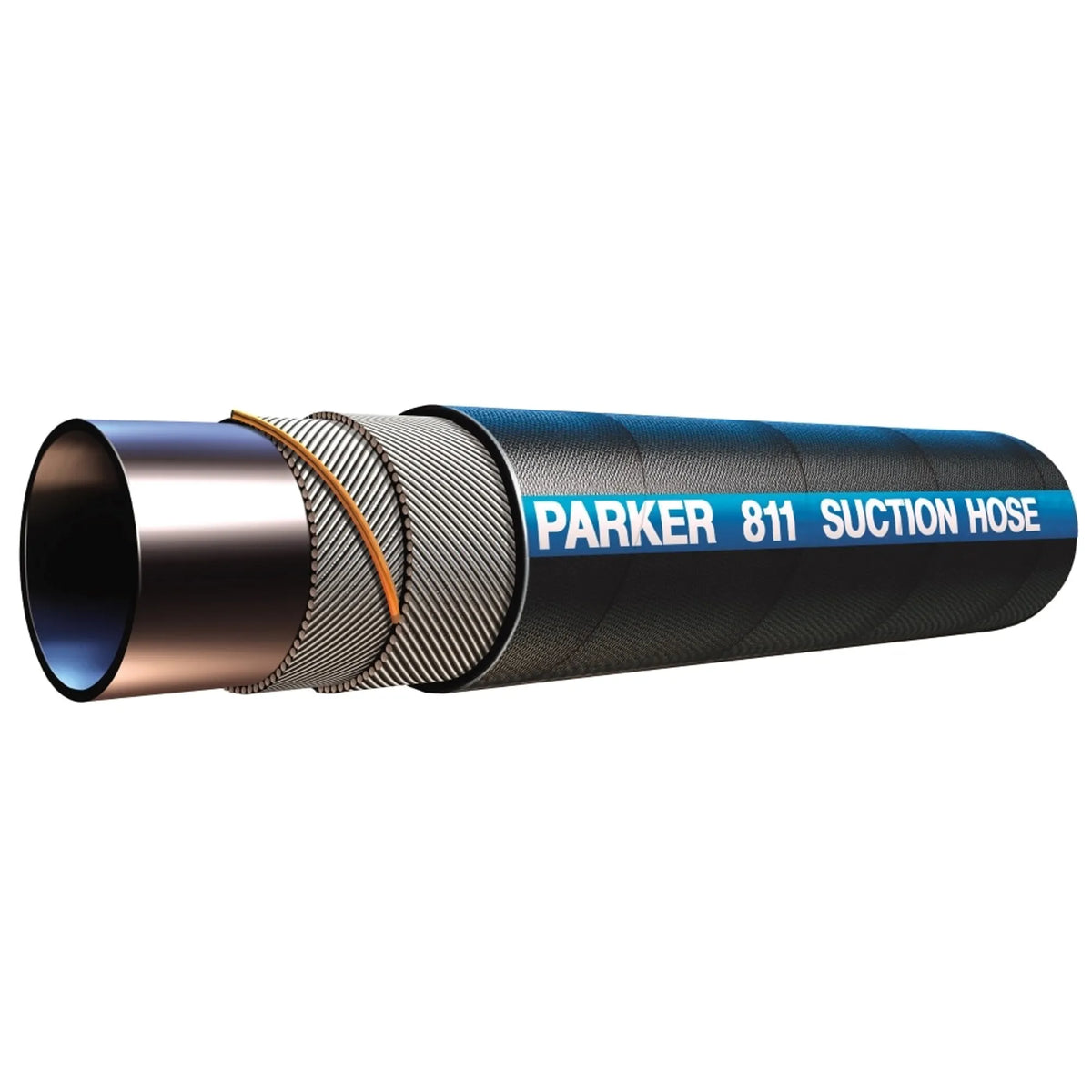

SKU:811-12
811-12 ID 3/4 SIZE 12 IY$040,
Availability
In stock
Availability
Inventory
Available for direct delivery or pickup
Express delivery in 1–2 business days is available for . For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Application
Lubricating Oils, Petroleum Base Hydraulic Fluids
Division (facet only)
Hose Products Division
Division id
687583
Maximum operating pressure
300 psi (w/ 81/88DB), 21 bar (w/ 81/88DB), 7 bar (w/ 88HC), 0.7 MPa (w/ 88HC), 100 psi (w/ 88HC), 2.1 MPa (w/ 81/88DB)
Product series
811
Region
NA
Specifications met
SAE 100R4, SAE J1943, USCG HF
Url
Maximum operating temperature
100 °C, 212 °F
Minimum operating temperature
-40 °C, -40 °F
Weight
0.63 kg/m, 0.42 lb/ft
Outside diameter
1.180 inch, 30 mm
No specifications found.
