SKU:KH30SCFX

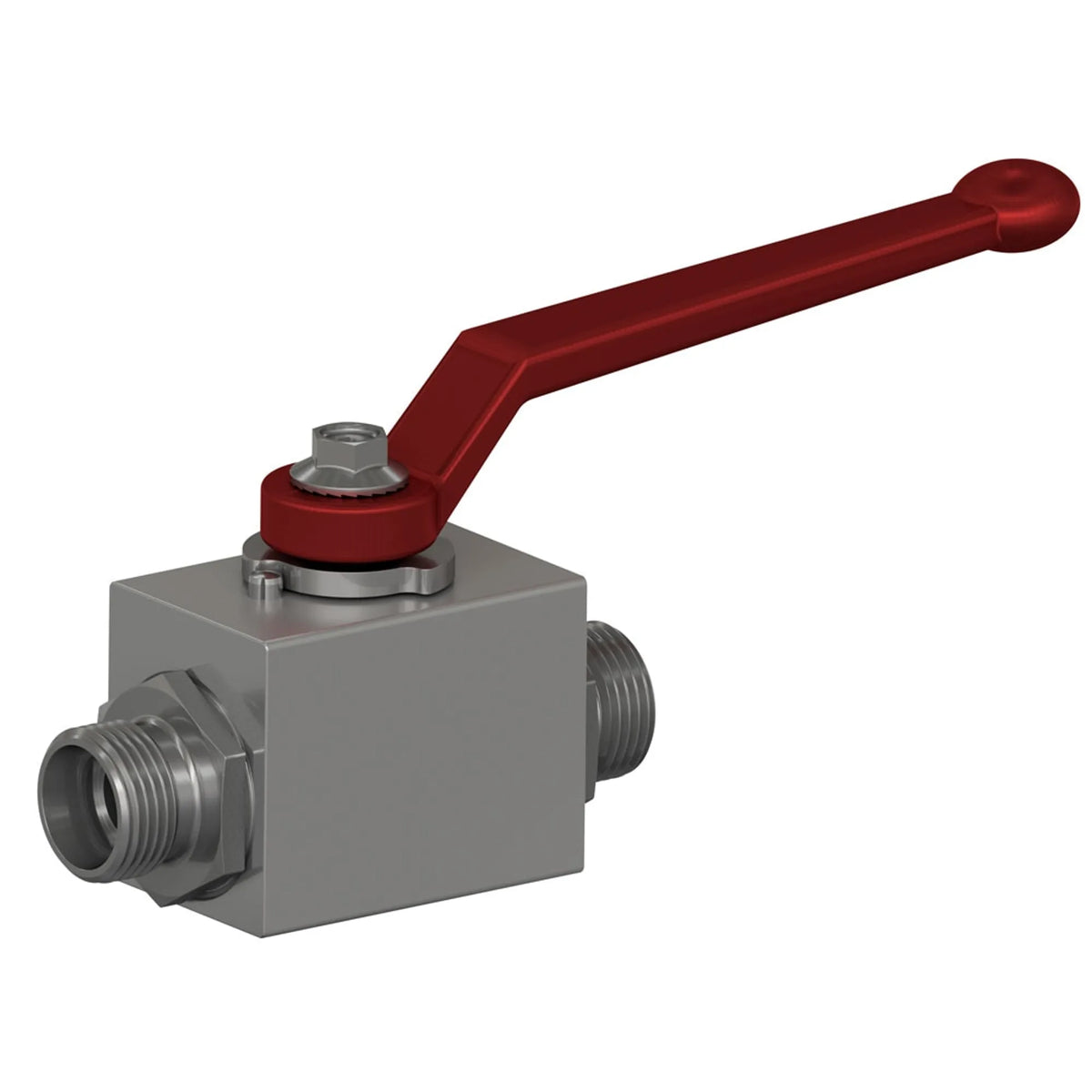

Ball valve | 2-way | DIN 30S | Heavy Class | Steel | 420 Bar
Availability
In stock
Availability
Inventory
Available for direct delivery or pickup
Express delivery in 1–2 business days is available for . For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Application
General Industrial
Body Material
Steel
Division (facet only)
High Pressure Connectors Europe Division
Division id
687614
Maximum operating pressure
420 bar
Product series
2-way ball valve
Region
EU
Shape
Straight 2-way
Url
Actuation type
Manual
Configuration
2-way ball valve
Connection size
30 mm
Connection type
EO 24° cone end
Maximum operating temperature
100 °C, 212 °F
Minimum operating temperature
-10 °C, 14 °F
Mounting type
Screw
Operation type
Manual
Seal material
NBR
Function
2-way
Product type
Valves
No specifications found.
