SKU:026-67034-0

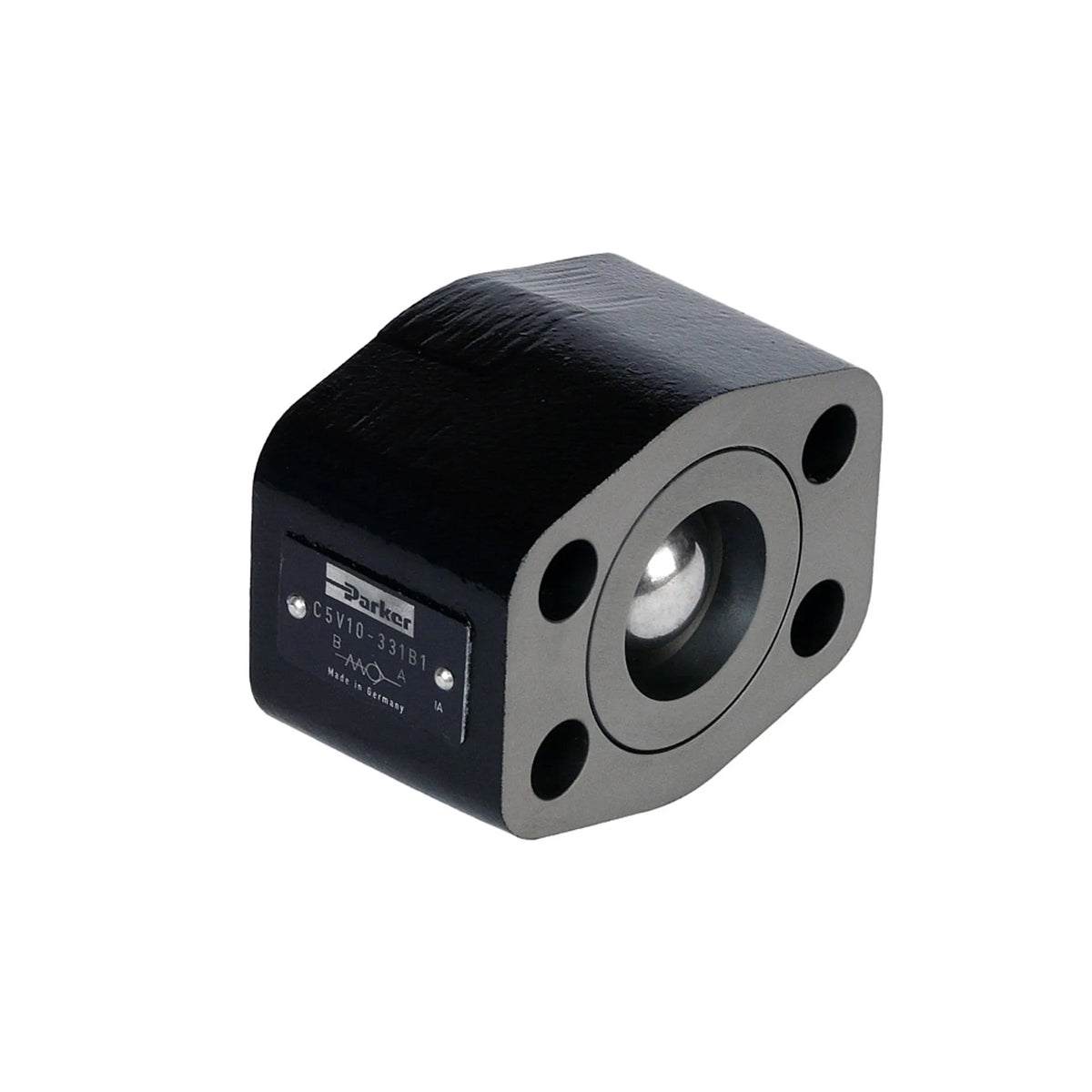

C5V06-331B1 CHECK VALVE
Availability
+ 8 days
Availability
Inventory
+ 8 days lead time
Express delivery in 1–2 business days is available for part of this quantity. For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Body Material
Cast Iron
Division (facet only)
Hydraulic Valve Systems Division Europe
Division id
687478
Maximum operating pressure
350 bar
Region
EU
Url
Actuation type
Mechanical
Connection type
Flange
Cracking pressure
1.0 bar
Flow direction
A to B
Maximum flow rate
100 L/min
Maximum operating temperature
60 °C
Minimum operating temperature
-20 °C
Mounting type
Flanged according SAE
Operation type
Direct
Port connection
SAE 3/4
Seal material
NBR
Weight
0.6 kg
Seal type
Without sealing
