SKU:D3FBE01ME0NKW3

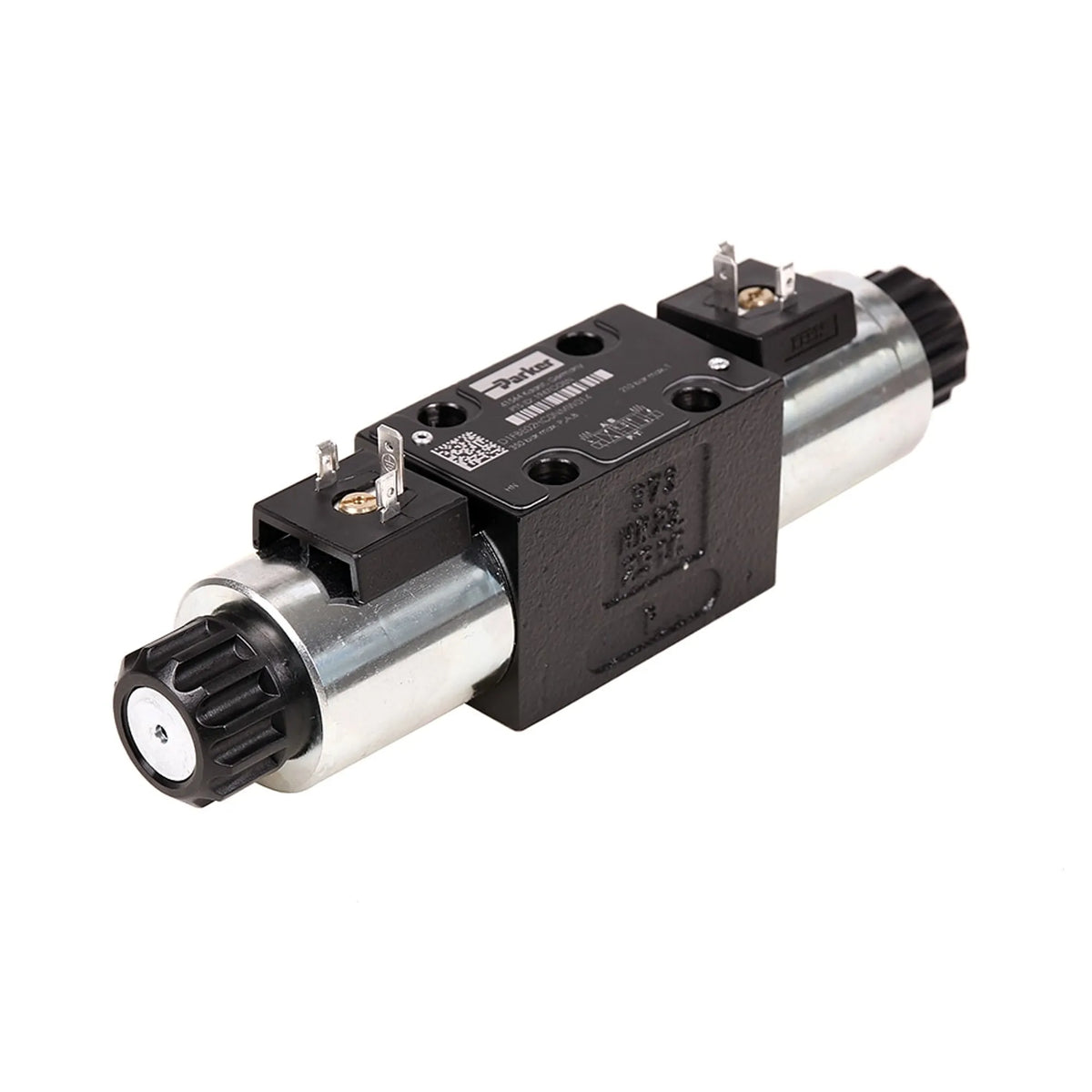

D3FBE01ME0NKW318 PROP. DIRECT CONTROL VALVE
Availability
+ 8 days
Availability
Inventory
+ 8 days lead time
Express delivery in 1–2 business days is available for part of this quantity. For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Body Material
Cast Iron
Division (facet only)
Hydraulic Valve Systems Division Europe
Division id
687478
Maximum operating pressure
350 bar
Region
EU
Url
Actuation type
Solenoid, Proportional
Maximum operating temperature
60 °C
Minimum operating temperature
-20 °C
Mounting type
Subplate
Operation type
Direct
Port connection
NG10 / CETOP 05
Seal material
NBR
Weight
6.5 kg
Flow rate
40 L/MIN
Function
2-way
Mounting position
Unrestricted
For fluid type
Hydraulic Oil According to DIN 51524 ... 535
Maximum ambient temperature
60 °C
Maximum fluid temperature
60 °C
Minimum ambient temperature
-20 °C
Minimum fluid temperature
-25 °C
