SKU:D41VW004C4NGW

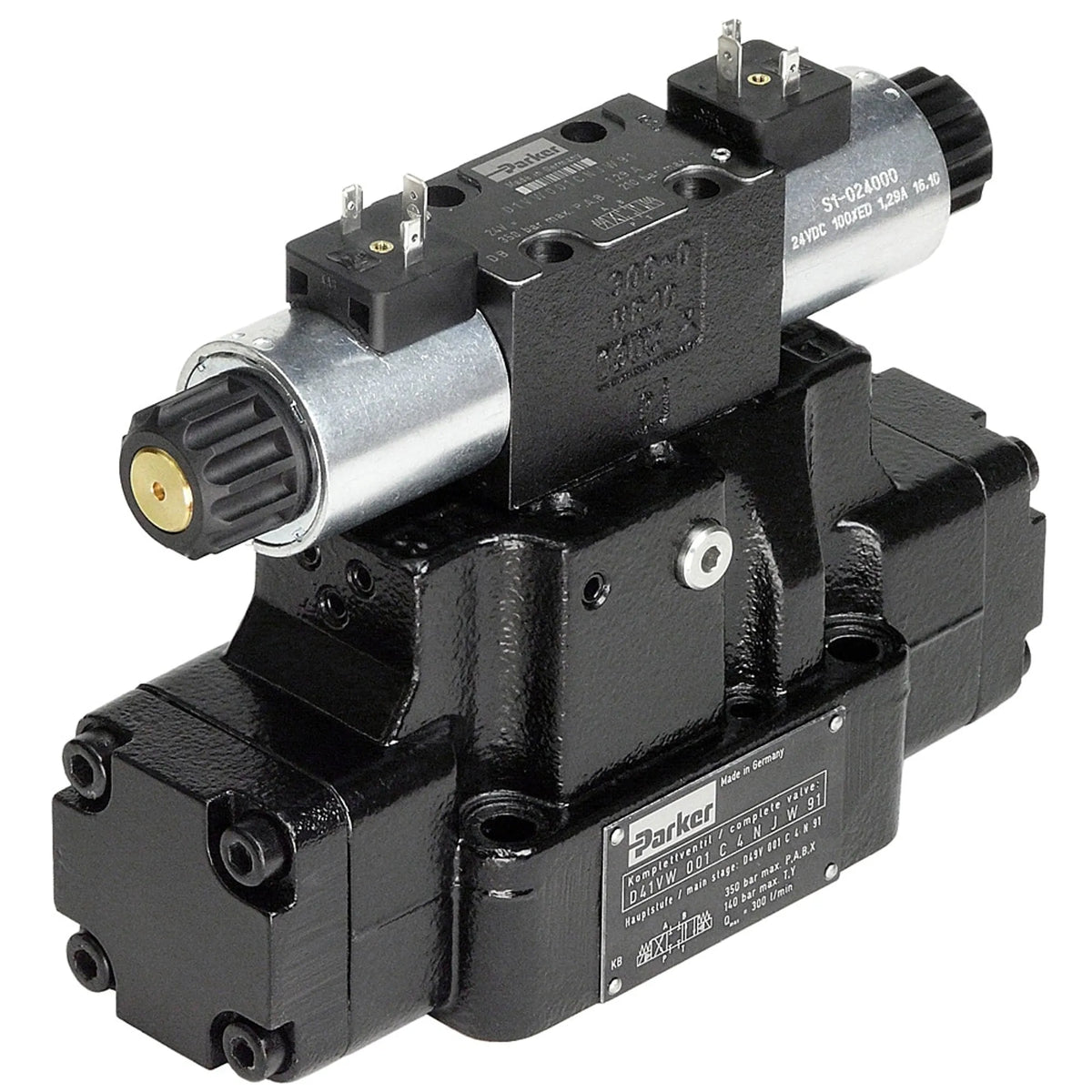

D41VW004C4NGW91 DIRECTIONAL CONTROL VALVE
Availability
+ 8 days
Availability
Inventory
+ 8 days lead time
Express delivery in 1–2 business days is available for part of this quantity. For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Body Material
Cast Iron
Division (facet only)
Hydraulic Valve Systems Division Europe
Division id
687478
Maximum operating pressure
350 bar
Region
EU
Url
Actuation type
Solenoid
Connection type
Connector as per EN 175301-803
Maximum flow rate
300 L/min
Maximum operating temperature
60 °C
Minimum operating temperature
-25 °C
Mounting type
Subplate
Operation type
Pilot
Port connection
NG16 / CETOP 07
Seal material
NBR
Weight
10.3 kg
Function
3-Way
For fluid type
Hydraulic Oil According to DIN 51524
