SKU:D91FPE52HA1NK70

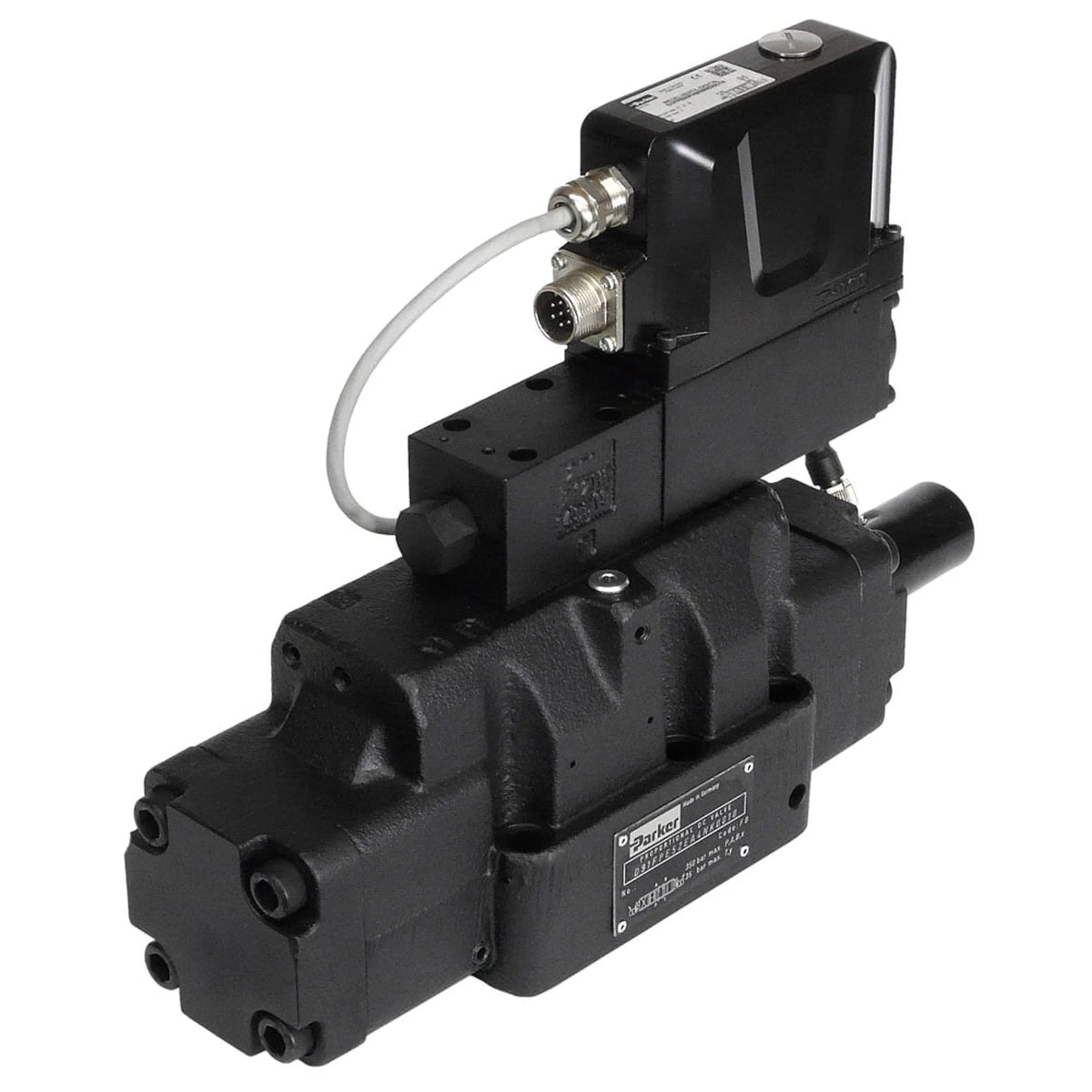

D91FPE52HA1NK7050 PROP. DIRECT CONTROL VALVE
Availability
+ 8 days
Availability
Inventory
+ 8 days lead time
Express delivery in 1–2 business days is available for part of this quantity. For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Application
Industrial Hydraulic
Body Material
Cast Iron
Brand
Parker
Division
Industrial Systems Division Europe
Division (facet only)
Hydraulic Valve Systems Division Europe
Division id
687478
Maximum operating pressure
350 bar
Region
EU
Technology
Hydraulics
Url
Actuation type
VCD®-actuator
Connection type
6+PE + enable
Flow direction
0-10 V = P-A
Maximum flow rate
1000 L/min
Mounting type
Subplate Mounting
Operation type
Pilot
Port connection
NG10 / CETOP 05, NG16 / CETOP 07, NG25 / CETOP 08, NG32 / CETOP 10
Seal material
NBR
Weight
23.5 kg
Flow rate
450.0 L/min
Function
Proportional, 3-way
Mounting position
Horizontal mounting preferred
Power supply voltage
24 VDC nominal (tolerance range 22 … 30), electric shut-off at < 19, ripple < 5 % eff., surge free
For fluid type
Hydraulic Oil according to DIN 51524 ... 535
Maximum ambient temperature
60 °C
Maximum fluid temperature
60 °C
Minimum ambient temperature
-20 °C
Minimum fluid temperature
-20 °C
