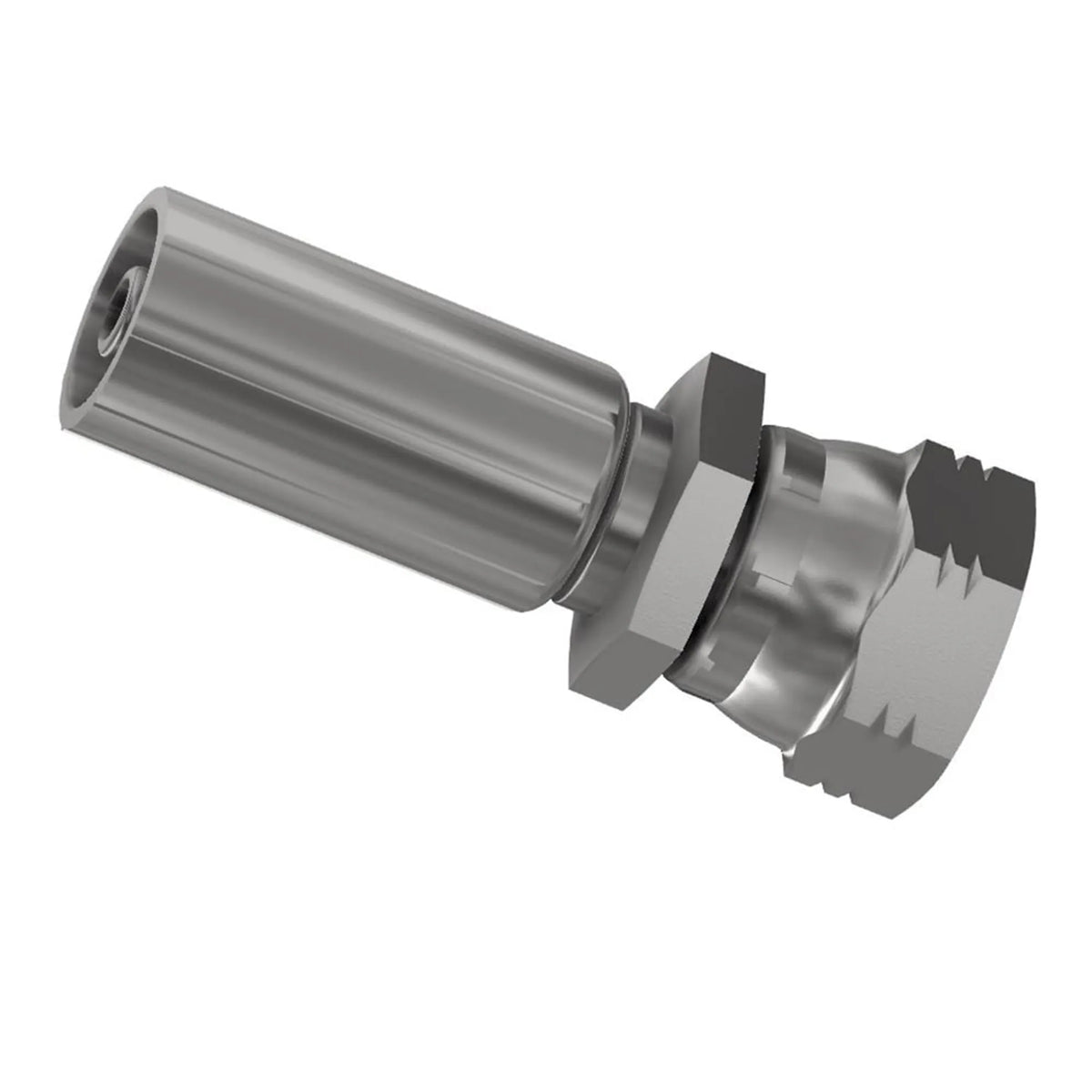

SKU:1FU48-8-8
DK BSP DN12 E
Availability
In stock
Availability
Inventory
Available for direct delivery or pickup
Express delivery in 1–2 business days is available for . For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Application
Hydraulics
Body Material
Steel
Brand
Parker
Coating
Chromium 6 Free-plated
Connection 1 size
12.7 mm Hose I.D., 1/2 inch Hose I.D., -8 (Size)
Connection 1 type
Hose
Connection 2 size
1/2"-14 inch Thread
Connection 2 type
Female, Swivel (30° Flare), BSP Parallel Pipe
Connection length
38 mm (see drawing legend B)
Division
Polymer Hose Division Europe
Division (facet only)
Polymer Hose Division Europe
Division id
687513
Fitting length
n/a (see drawing legend A)
Hex size 1
27 mm (see drawing legend W)
Industry
Industrial Manufacturing Equipment, Transportation, Off-road Machinery
Maximum operating pressure
35.0 MPa, 350 bar
Port type
GUI
Product series
Parkrimp Medium Pressure Fittings 48 Series
Region
EU
Shape
Straight
Specifications met
ISO 228-1, JIS B8363
Technology
Fluid & Gas Handling
Url
Configuration
Hose to Port
Product type
Hose Fittings
For fluid type
Hydraulic Fluids, Water, Air, Coolants (Water-Glycol), Mineral Hydraulic Oil
Product style
-
Hose inside diameter
-8
Port size
1/2"
No specifications found.
