SKU:DSH161C

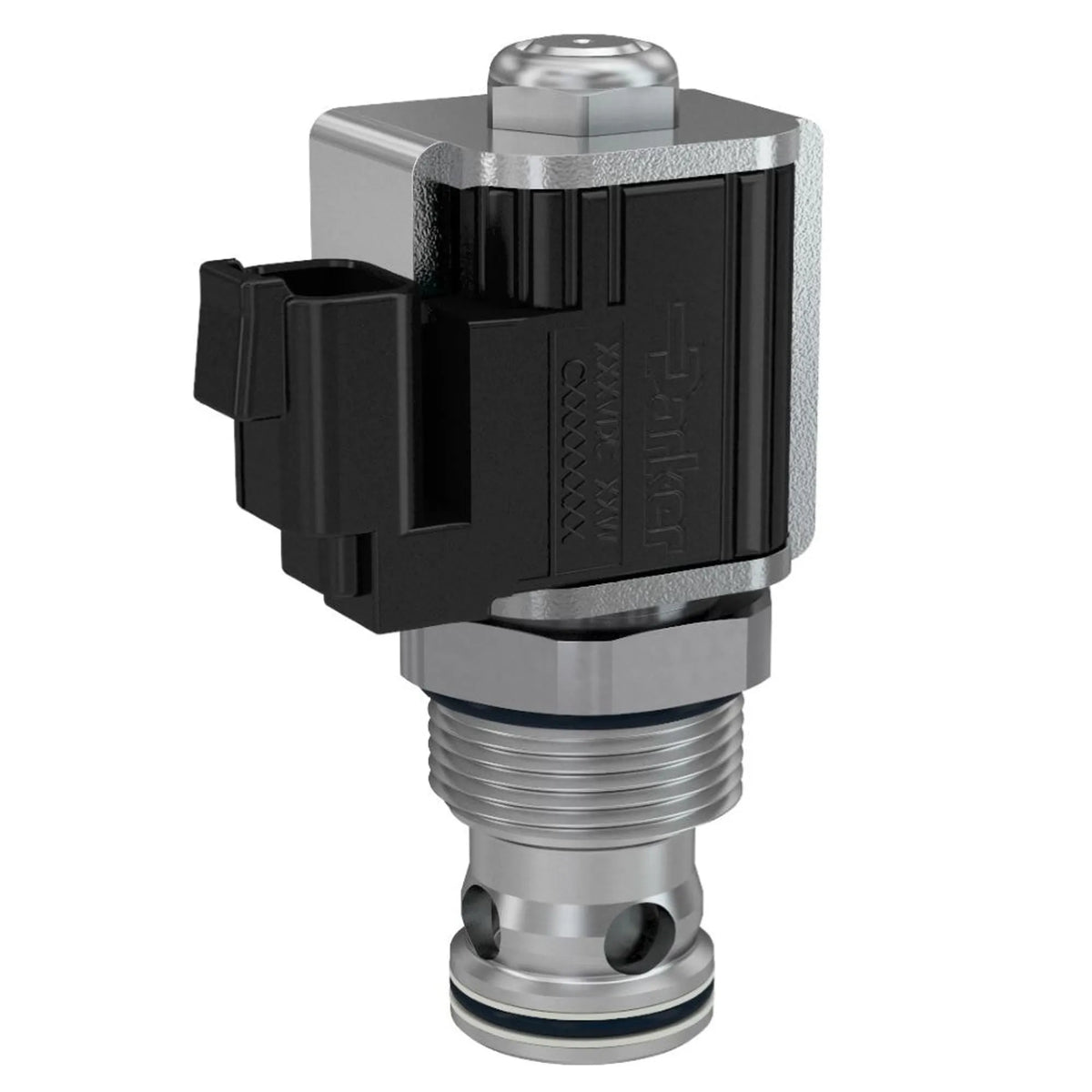

DSH161C 2/2 DIRECTIONAL VALVE
Availability
+ 53 days
Availability
Inventory
+ 53 days lead time
Express delivery in 1–2 business days is available for part of this quantity. For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Division
Hydraulic Valve Systems Division
Division id
687505
Maximum operating pressure
350 bar, 5000 psi
Product series
2 Way Poppet Type Solenoid Valve
Region
NA
Url
Actuation type
Electrical
Configuration
Normally Closed
Flow direction
Side to Nose (2-1)
Maximum flow rate
150 L/min, 40 gal/min
Maximum operating temperature
+121 °C, +250 °F
Minimum operating temperature
-34 °C, -30 °F
Mounting type
Screw in cartridge valve
Operation type
Solenoid operated
Seal material
Nitrile
Weight
0.34 kg, 0.75 lb
Flow rate
150 L/min, 40 gal/min
Function
2-way
Operating temperature
-34 to +121 °C, -30 to +250 °F
For fluid type
Mineral-based or synthetic hydraulic fluids
No specifications found.
