SKU:RHZ42LRED0.2BOMDCF

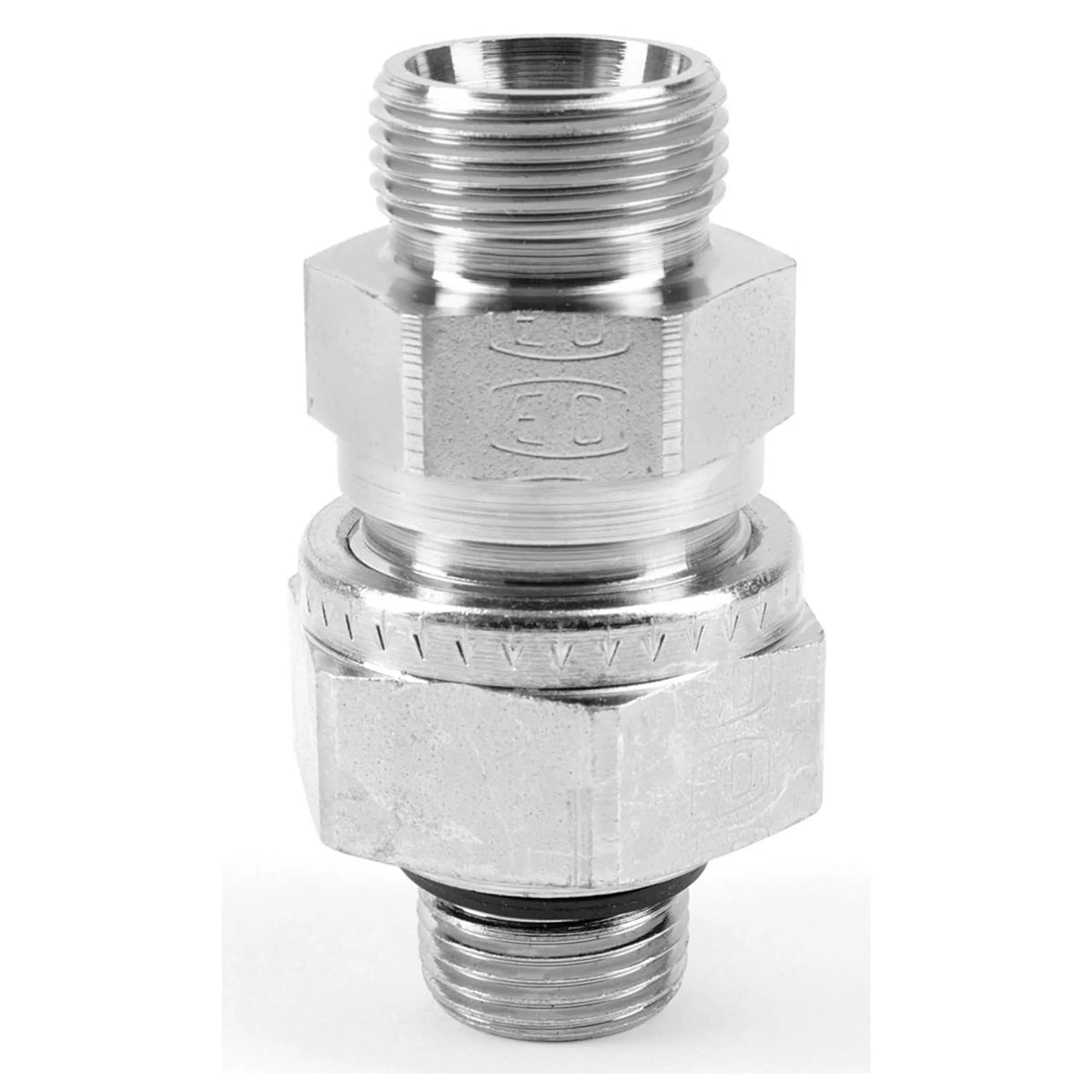

EO Non return valve
Availability
+ 18 days
Availability
Inventory
+ 18 days lead time
Express delivery in 1–2 business days is available for part of this quantity. For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Body Material
Steel
Connection 1 size
G 1 1/2 A inch
Connection 1 type
Male metric thread - ED-seal (ISO 9974)
Connection 2 size
42 mm
Connection 2 type
Male BSPP thread - ED-seal (ISO 1179)
Division (facet only)
High Pressure Connectors Europe Division
Division id
687614
Maximum operating pressure
250 bar
Region
EU
Url
Actuation type
Mechanical
Cracking pressure
0.2 bar
Flow direction
Tube to Port
Maximum operating temperature
+120 °C
Minimum operating temperature
-40 °C
Mounting type
Screw
Seal material
NBR
Product type
Non return valve for 1 tube
No specifications found.
