SKU:1J977-12-16

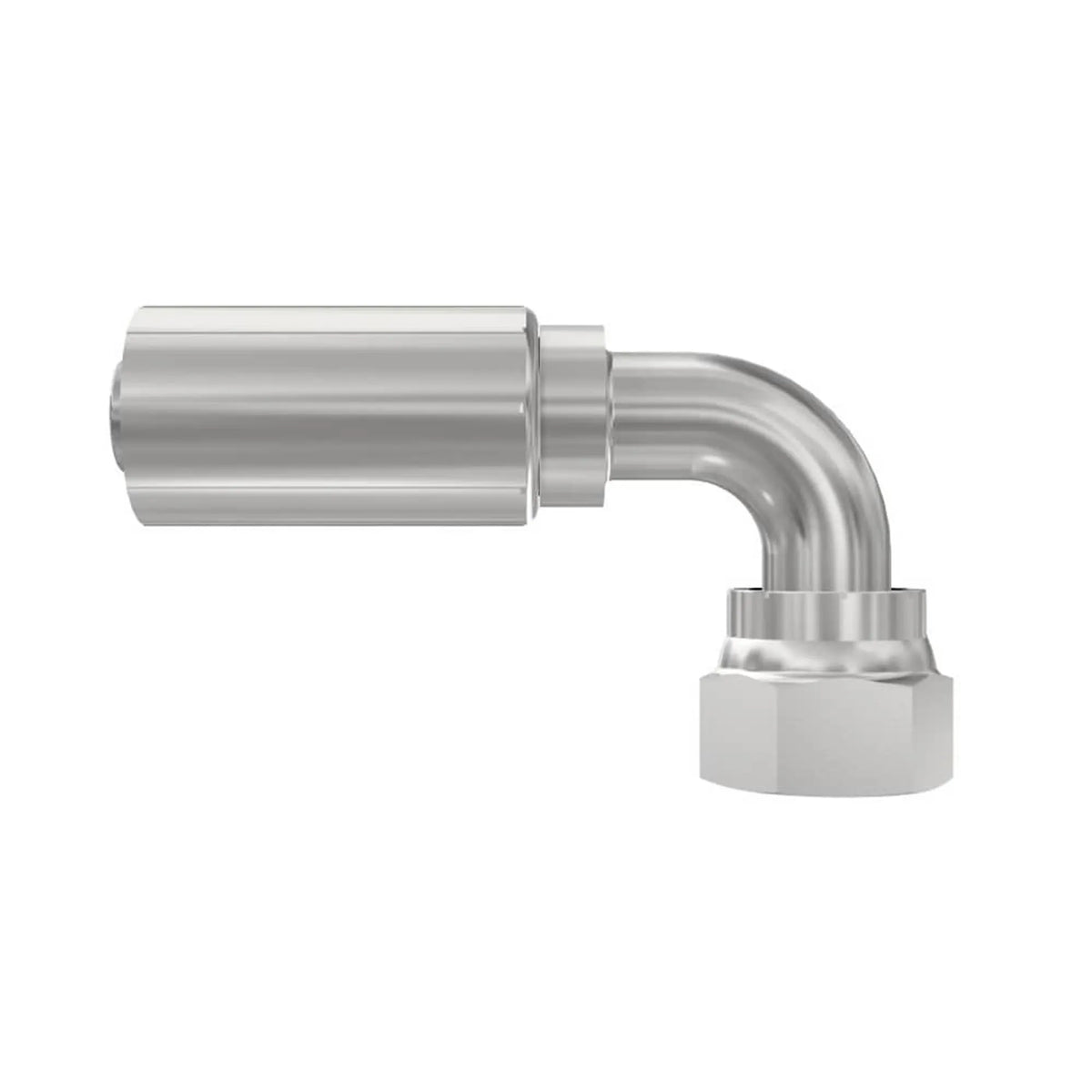

Female ORFS Swivel - 90° elbow short
Availability
In stock
Availability
Inventory
Available for direct delivery or pickup
Express delivery in 1–2 business days is available for . For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Application
Petroleum Base Hydraulic Fluids, Lubricating Oils
Body Material
Steel
Brand
Parker
Connection 1 size
-16 (Size), 1 inch, 25.4 mm
Connection 1 type
Hose
Connection 2 size
1-3/16"-12 inch Thread
Connection 2 type
Female, Swivel, Seal-Lok®
Connection length
58
Division
Polymer Hose Division Europe
Division (facet only)
Polymer Hose Division Europe
Division id
687513
Industry
Industrial Manufacturing Equipment, Off-road Machinery
Maximum operating pressure
41.0 MPa, 410 bar
Port type
ORFS
Product series
77 Series Fittings - HPDE
Region
EU
Shape
Elbow 90° Short Drop
Specifications met
ISO 12151-1-SWES, SAE J516
Technology
Fluid & Gas Handling
Url
Configuration
Hose to Port
Product type
Crimp Fittings No-Skive
For fluid type
Petroleum Hydraulic Fluids (Petroleum Base), Lubricants (Oils)
Hose inside diameter
-16
Port size
3/4"
No specifications found.
