SKU:787TC-16

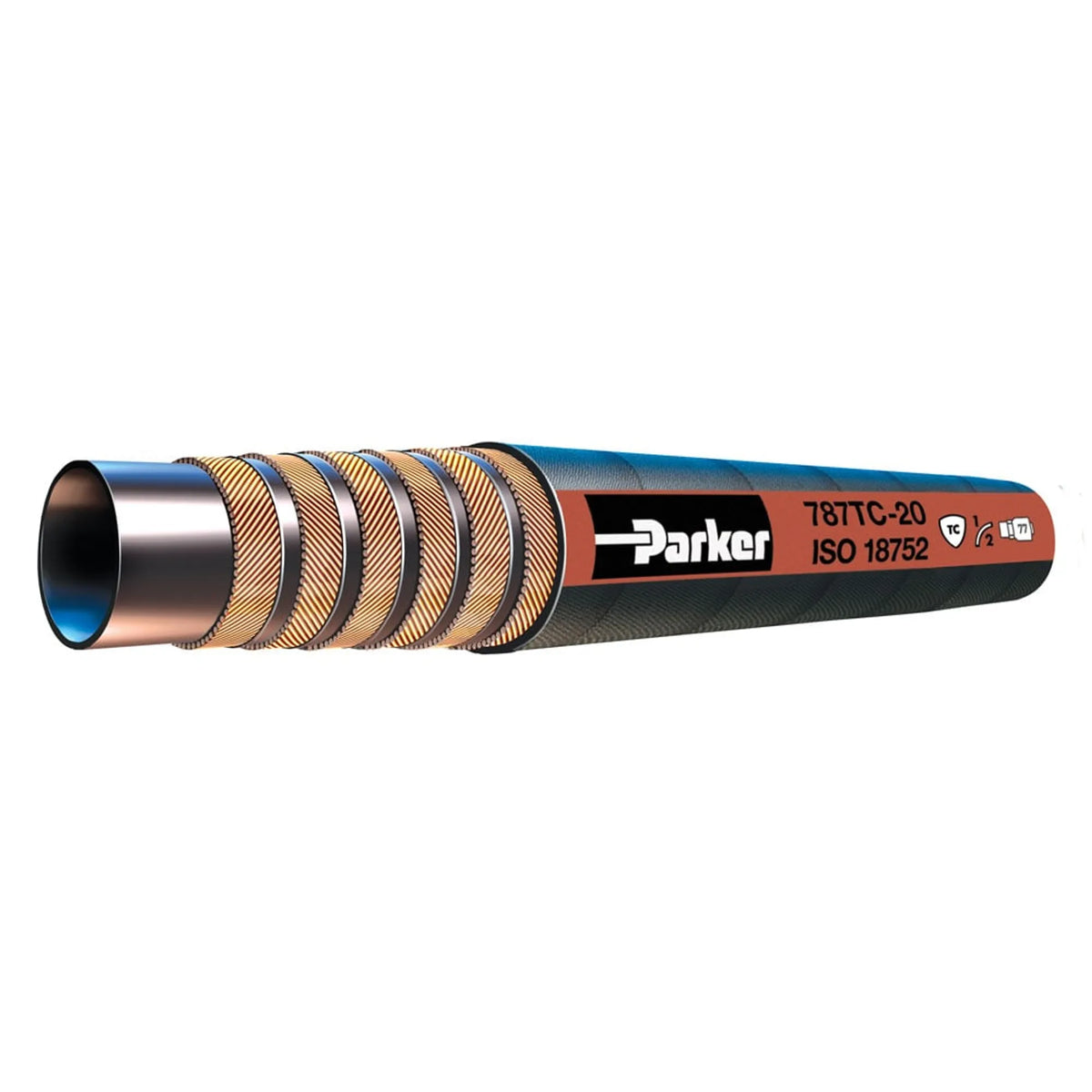

Hydraulic Hose | 1" | Compact Steel Spiral | 350 bar / 5,000 psi | ToughCover | Marine Approval
Availability
+ 3 days
Availability
Inventory
+ 3 days lead time
Express delivery in 1–2 business days is available for the entire quantity. For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Application
Lubricating Oils, Petroleum Base Hydraulic Fluids
Division (facet only)
Hose Products Division
Division id
687583
Maximum operating pressure
35 MPa, 350 bar, 5000 psi
Product series
787
Region
NA
Specifications met
ISO 18752, Type DC, MSHA TC, ST CP covers only
Url
Maximum operating temperature
125 °C, 257 °F
Minimum operating temperature
-40 °C, -40 °F
Weight
1.74 kg/m, 1.17 lb/ft
Outside diameter
1.400 inch, 35.7 mm
No specifications found.
