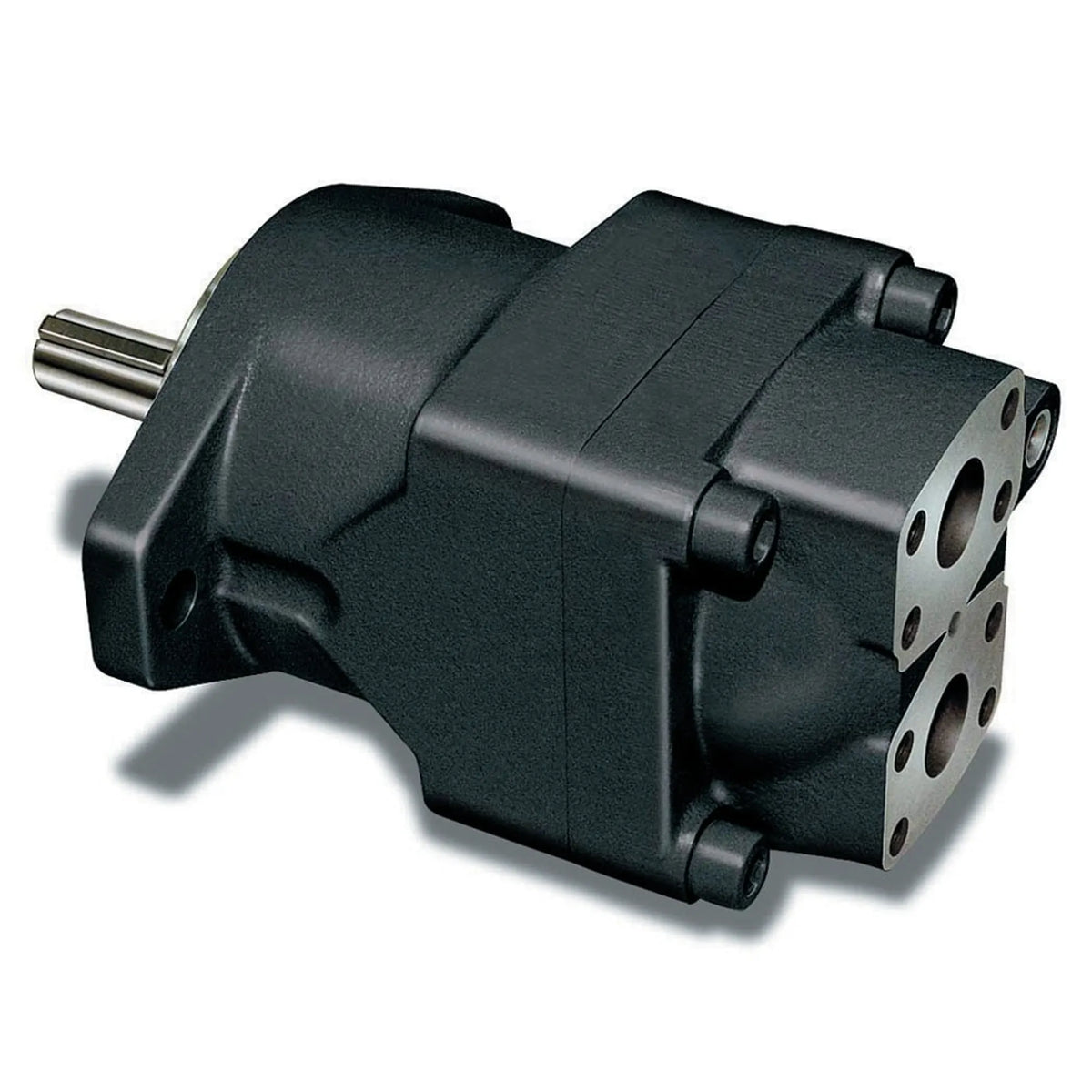

SKU:024-03224-000
M4D 113 3N00 B102
Availability
+ 83 days
Availability
Inventory
+ 83 days lead time
Express delivery in 1–2 business days is available for part of this quantity. For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Brand
Denison
Division (facet only)
Hydraulic Pump and Motor Europe
Division id
687925
Maximum operating pressure
175 bar
Port type
Rear ports
Product series
Medium Duty Vane Motors - Series M3B & M4
Region
EU
Url
Direction of rotation
Bi-directional
Displacement
116.7
Drain option
External
Drain port size
SAE 8 - 3/4" UNF
Flange size
SAE C
Material seals
Buna-N
Outlet port size
1-1/4" SAE 3000 - UNC Thread
Port connection inlet
1"1/4 SAE 3000 - UNC thread
Rated speed
4000 RPM
Shaft type
Splined (SAE C) 14 teeth
Torque rating
372 Nm (at 175 bar)
