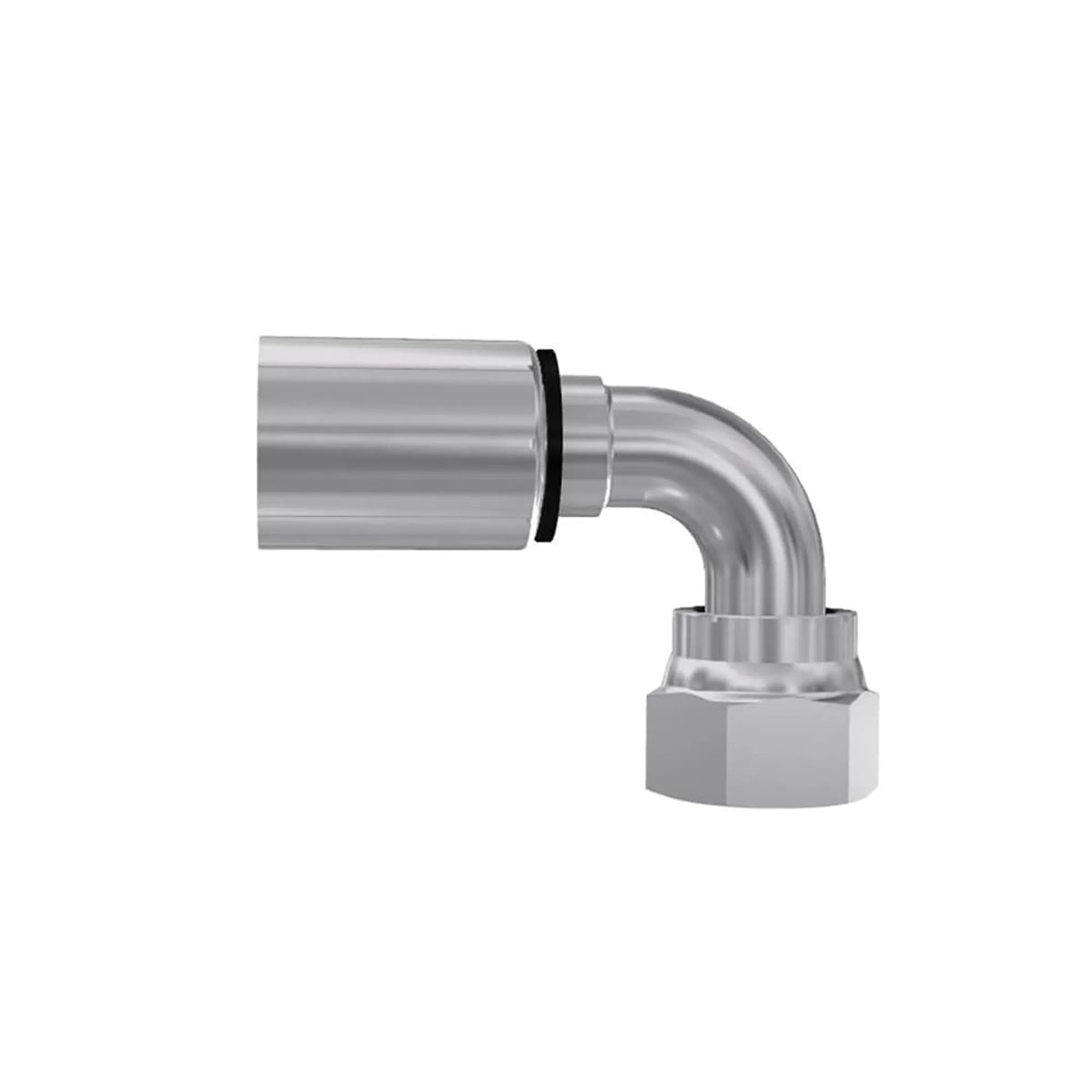

SKU:1J948-16-12
ORFS 90 DN20 E
Availability
In stock
Availability
Inventory
Available for direct delivery or pickup
Express delivery in 1–2 business days is available for . For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Application
Hydraulics
Body Material
Steel
Brand
Parker
Coating
Chromium 6 Free-plated
Connection 1 size
19.1 mm Hose I.D., 3/4 inch Hose I.D., -12 (Size)
Connection 1 type
Hose
Connection 2 size
1-7/16"-12 inch Thread
Connection 2 type
Female, Swivel, Seal-Lok®
Connection length
62 mm (see drawing legend B)
Division
Polymer Hose Division Europe
Division (facet only)
Polymer Hose Division Europe
Division id
687513
Industry
Industrial Manufacturing Equipment, Transportation, Off-road Machinery
Maximum operating pressure
41.0 MPa, 410 bar
Port type
ORFS
Product series
Parkrimp Medium Pressure Fittings 48 Series
Region
EU
Shape
Elbow 90° Short Drop
Specifications met
ISO 12151-1-SWES, SAE J516
Technology
Fluid & Gas Handling
Url
Configuration
Hose to Port
Product type
Hose Fittings
For fluid type
Hydraulic Fluids, Water, Air, Coolants (Water-Glycol), Mineral Hydraulic Oil
Product style
-
Hose inside diameter
-12
Port size
1-7/16"
No specifications found.
