SKU:528N-6

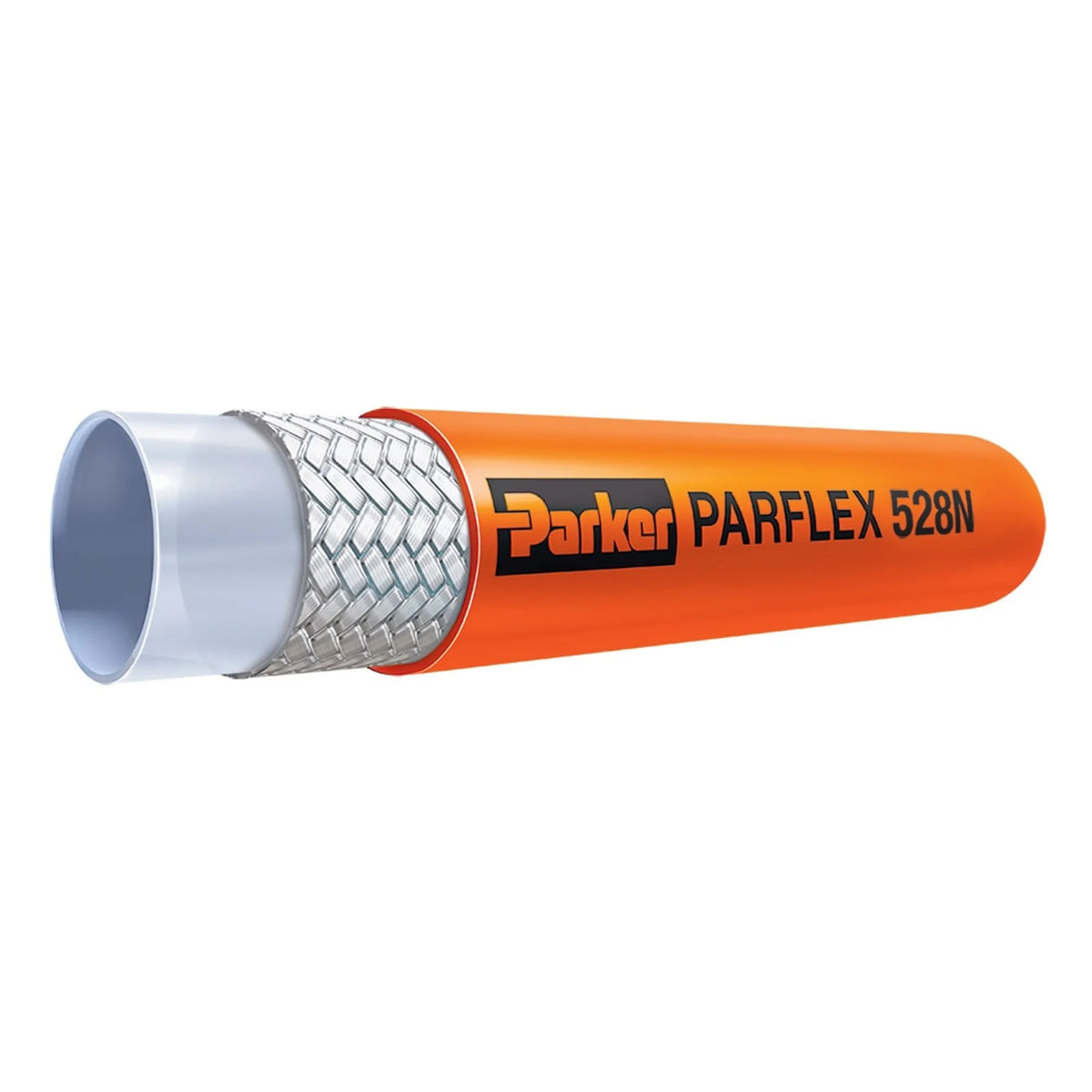

PARFLEX 528N-6 DN10
Availability
In stock
Availability
Inventory
Available for direct delivery or pickup
Express delivery in 1–2 business days is available for . For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Application
Fluid Handling, Forestry, Agriculture Equipment, Industrial, Manufacturing, Hydraulics, Construction Equipment, Food & Beverage Processing, Non-conductive, Pneumatics
Division (facet only)
Parflex Division
Division id
687563
Maximum operating pressure
27.6 MPa, 276 bar, 4000 psi
Product series
520N-528N
Region
NA
Specifications met
DNV GL, SAE 100R8, SAE J517 (for less than 50 micro-amps leakage under 75000 volts per ft.)
Url
Maximum operating temperature
100 °C, 212 °F
Minimum operating temperature
-40 °C, -40 °F
Weight
0.13 kg/m, 0.08 lb/ft
Product style
Non-Conductive
Outside diameter
0.650 inch, 16.5 mm
