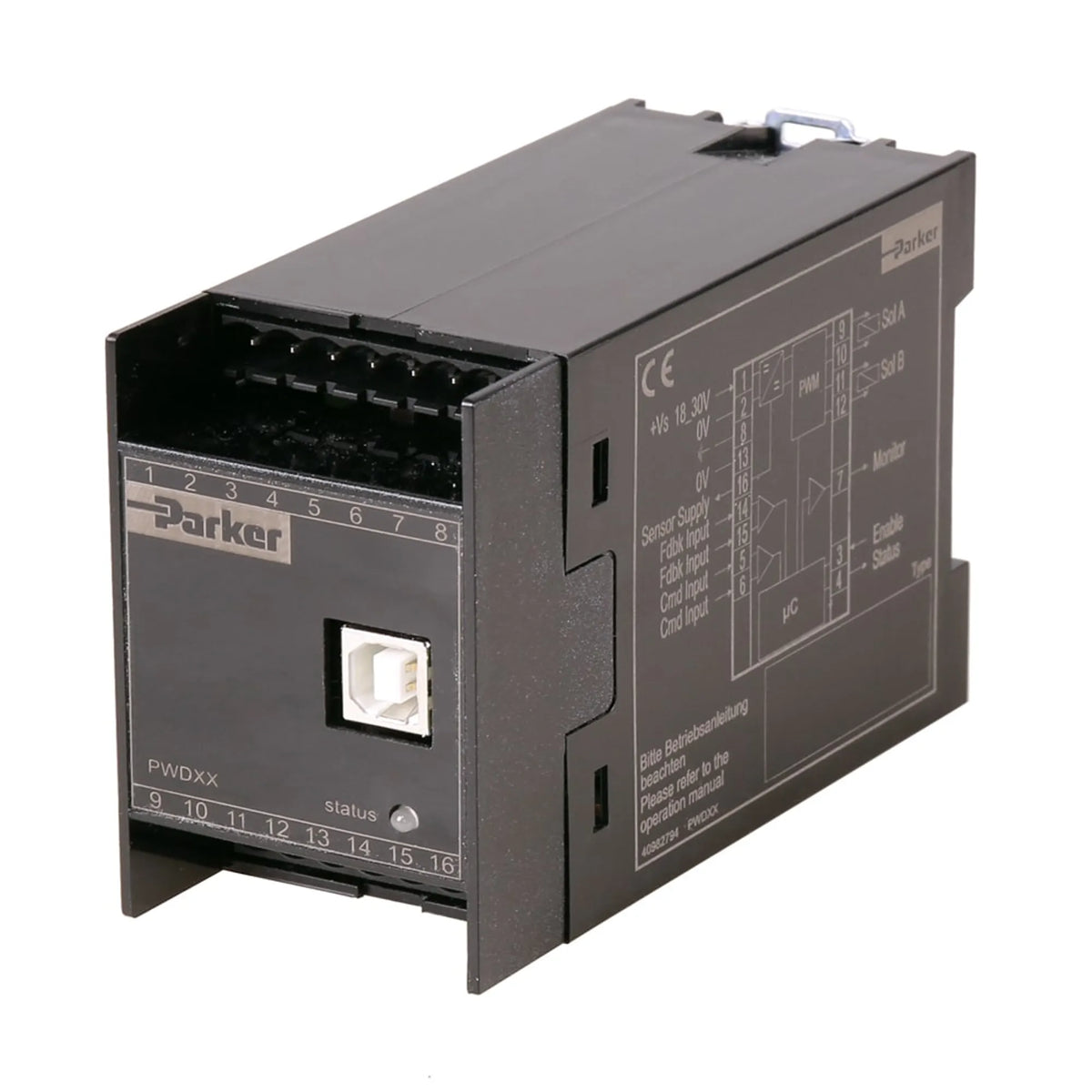

PWDXXA-400

PWDXXA-400

PWDXXA-400-22 AMPLIFIER UNIT

Technical specification
Body Material
Polycarbonate
Division (facet only)
Hydraulic Valve Systems Division Europe
Division id
687478
Region
EU
Specifications met
IP20 acc. EN 60529; V0 acc. UL 94; EMC EN 50081-2, EN 50082-2
Url
URL
Maximum operating temperature
60 °C
Minimum operating temperature
-20 °C
Mounting type
Snap-on mounting
Weight
0.16 kg
Function
Operation of proportional DC valves with position sensor
Mounting position
Unrestricted
Electrical connection
Screw terminals 0.2 to 2.5 mm2, disconnectable

Related documents

Literature and Reference Materials

Service & maintenance manuals

OPERATION MANUAL - E-Module PWDXXA-40*

Catalogs

Proportional Control Valve Module Catalog - PWDXXA-40* Series (North America) CATALOGUE - Hydraulic Valves Industrial Standard, Online Version--MSG11-3500/UK CATALOGUE - E-Module for Proportional Valves Series PWDXXA-40* (Europe and Asia) CATALOGUE - Hydraulic Valves Industrial Standard, Offline Version--MSG11-3500/UK

Compliance, Certifications & Safety

Certifications

CERTIFICATE - DIN ISO 9001:2015 Certificate ISDE CERTIFICATE - EC Declaration of Conformity 2014/30/EU, (EMV)

Software Downloads

Software programs

SOFTWARE - ProPxD Parameter Software (Release 603_9011, 2020) SOFTWARE - ProPxD V2 Parameter Software (2026)
