SKU:056-40099-H

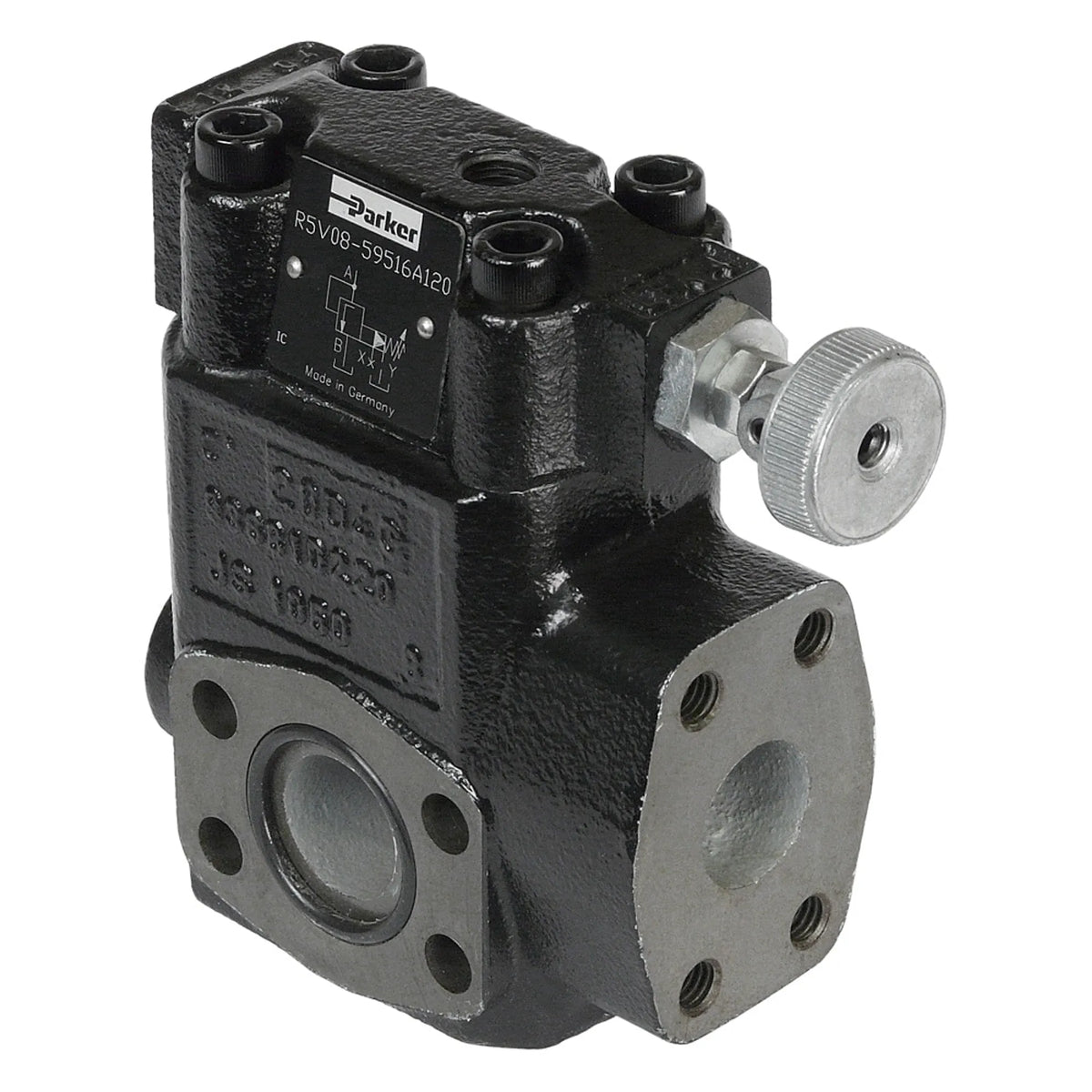

R5V10-6951209G0QA125 PRESSURE RELIEF VALVE
Availability
In stock
Availability
Inventory
Available for direct delivery or pickup
Express delivery in 1–2 business days is available for . For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Application
Industrial Hydraulic
Body Material
Cast Iron
Brand
Parker
Division (facet only)
Hydraulic Valve Systems Division Europe
Division id
687478
Maximum operating pressure
280 bar
Region
EU
Technology
Hydraulics
Url
Drain option
Drain line internal
Actuation type
Manual
Maximum operating temperature
60 °C
Minimum operating temperature
-20 °C
Mounting type
Flanged according SAE62
Operation type
Pilot
Port connection
SAE 1 1/4
Seal material
NBR
Weight
7.6 kg
Flow rate
600 L/min
For fluid type
Hydraulic Oil According to DIN 51524
Maximum ambient temperature
60 °C
Maximum fluid temperature
70 °C
Minimum ambient temperature
-20 °C
Minimum fluid temperature
-25 °C
Port size
SAE62
