SKU:RH1

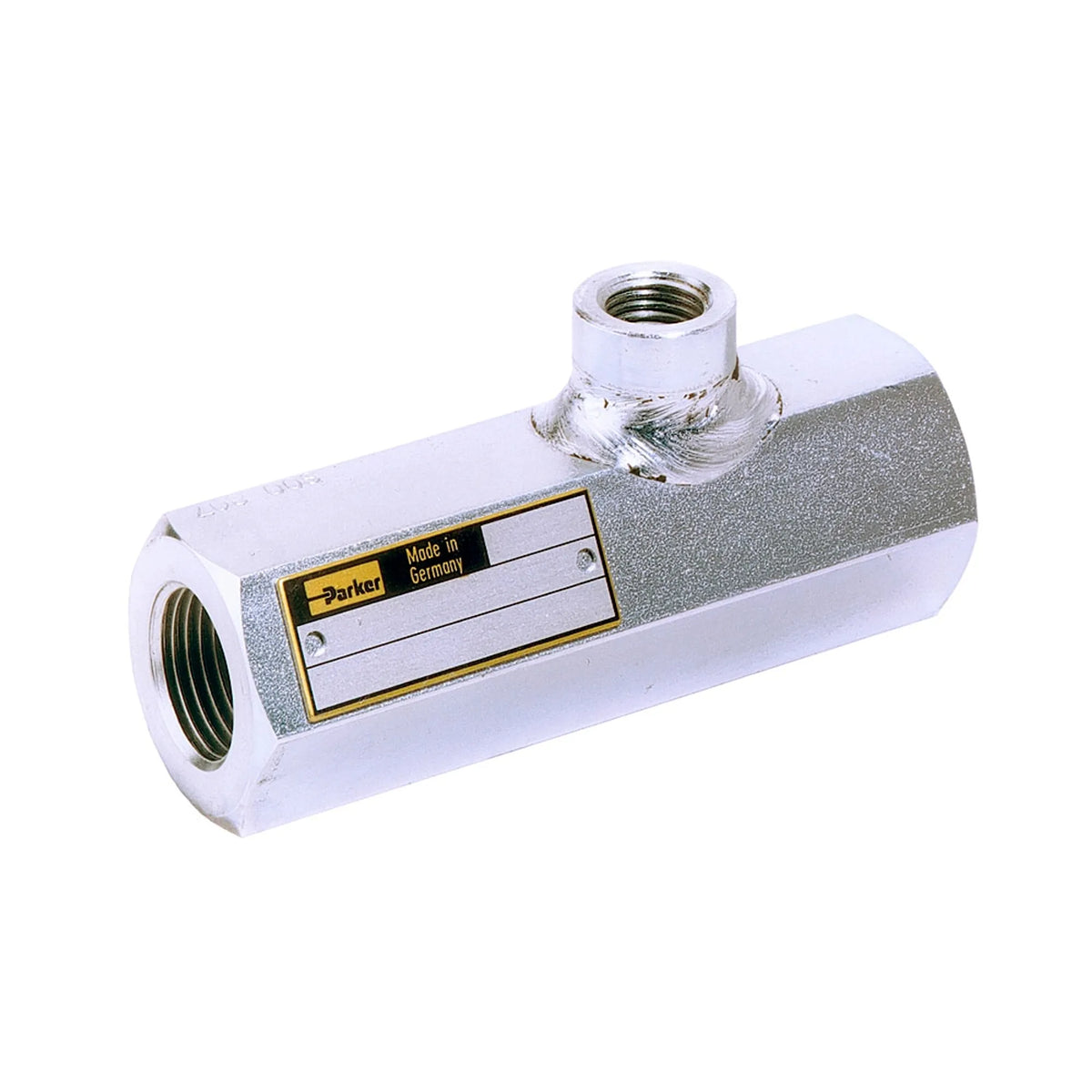

RH1 PILOT CHECK VALVE
Availability
+ 8 days
Availability
Inventory
+ 8 days lead time
Express delivery in 1–2 business days is available for part of this quantity. For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Body Material
Steel
Division (facet only)
Hydraulic Valve Systems Division Europe
Division id
687478
Maximum operating pressure
700 bar
Region
EU
Url
Actuation type
Hydraulically
Connection size
A, B: G 1/4; Z: G 1/4
Connection type
DIN ISO 228/1
Cracking pressure
0.2 to 0.3 bar
Flow direction
Free flow from B to A
Maximum flow rate
15 L/min
Maximum operating temperature
60 °C
Minimum operating temperature
-20 °C
Mounting type
Pipe mounting
Operation type
Pilot
Weight
0.4 kg
Function
Check function without pre-discharging
Mounting position
Unrestricted
No specifications found.
