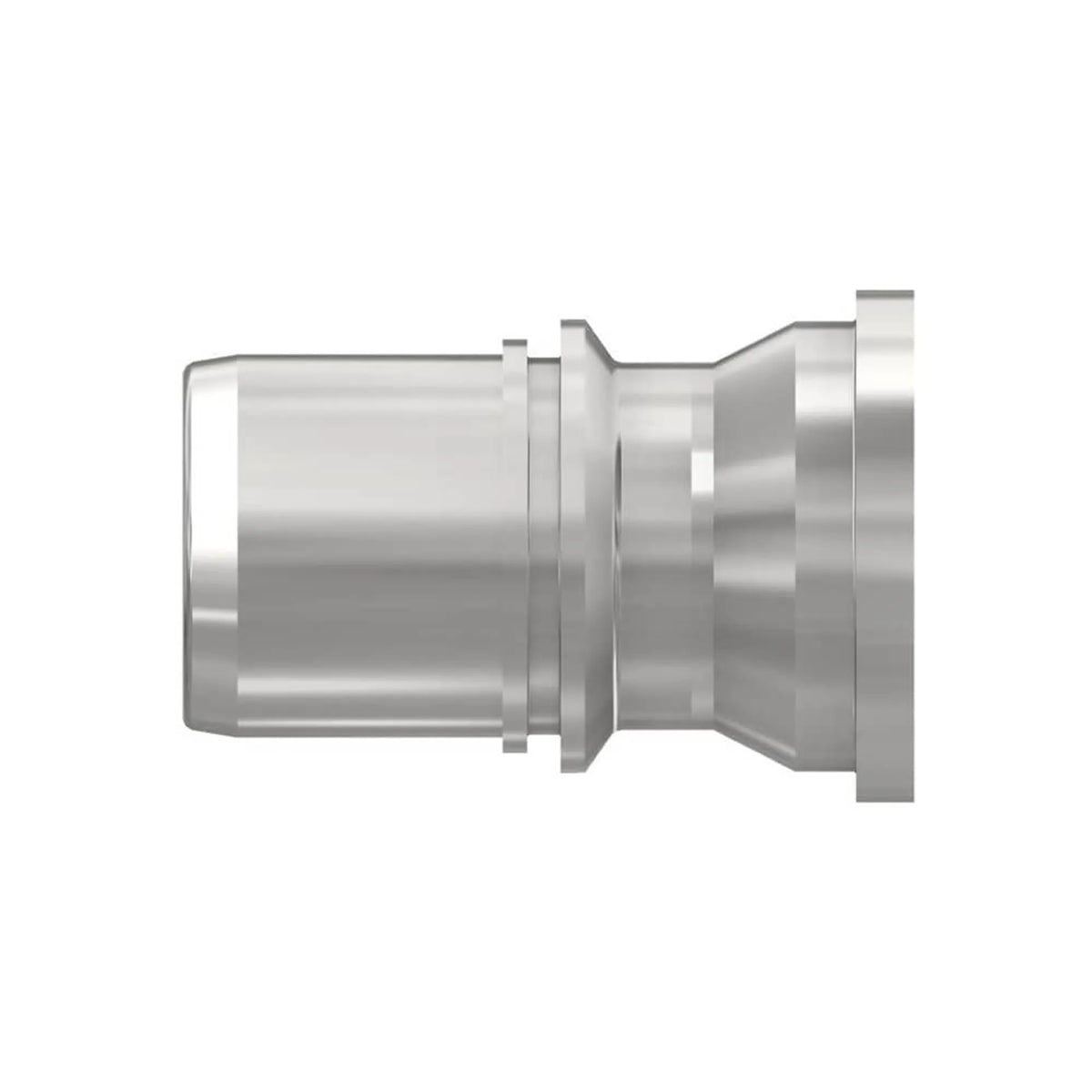

SKU:K15IF-40-40
SAE Code 61 - straight
Availability
+ 43 days
Availability
Inventory
+ 43 days lead time
Express delivery in 1–2 business days is available for part of this quantity. For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Application
Hydraulics
Body Material
Steel
Brand
Parker
Connection 1 size
63.5 mm Hose I.D., -40 (Size), 2-1/2 inch Hose I.D.
Connection 1 type
Hose
Connection 2 size
2-1/2 inch
Connection 2 type
ISO 6162-1, Flange
Connection length
57 mm (see drawing legend B)
Division
Polymer Hose Division Europe
Division (facet only)
Polymer Hose Division Europe
Division id
687513
Fitting length
119 mm (see drawing legend A)
Industry
Off-road Machinery, Transportation
Maximum operating pressure
17.5 MPa, 175 bar
Port type
SFL
Product series
Parkrimp No-Skive Fittings 2piece - Series IF
Region
EU
Shape
Straight
Specifications met
ISO 12151-3-S-L
Url
Flange size
84.1 mm (see drawing Legend F)
Configuration
Hose to Port
Product type
Crimp Fittings No-Skive
For fluid type
Hydraulic Fluids, Water, Air, Water-Glycol, Mineral Hydraulic Oil
