SKU:16N48-20-16

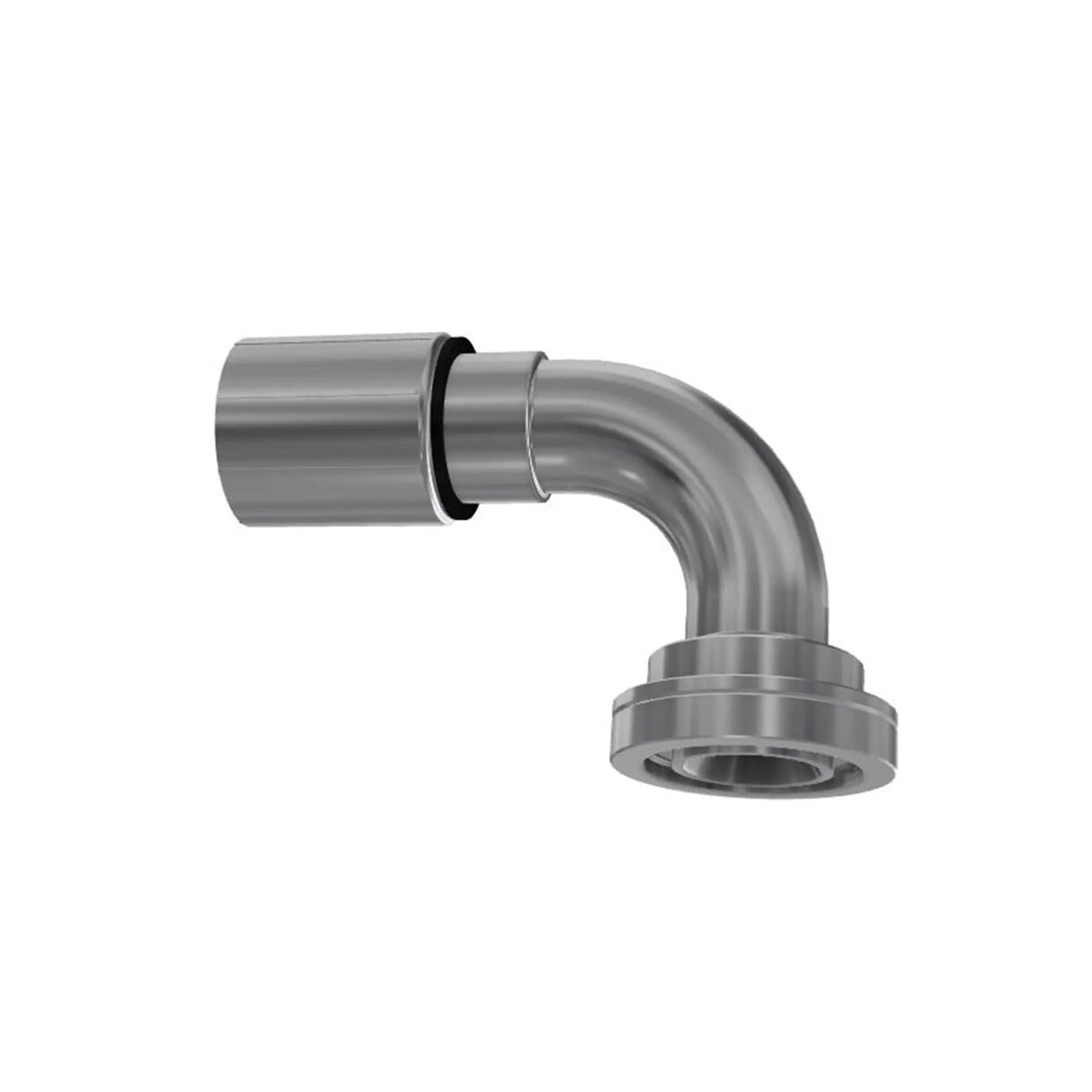

SAE Code 62 - 90° Elbow E
Availability
In stock
Availability
Inventory
Available for direct delivery or pickup
Express delivery in 1–2 business days is available for . For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Application
Hydraulics
Body Material
Steel
Brand
Parker
Coating
Chromium 6 Free-plated
Connection 1 size
25.4 mm Hose I.D., 1 inch Hose I.D., -16 (Size)
Connection 1 type
Hose
Connection 2 size
1-1/4 inch
Connection 2 type
Flange, Code 62 Flange, SAE
Connection length
n/a (see drawing legend B)
Division
Polymer Hose Division Europe
Division (facet only)
Polymer Hose Division Europe
Division id
687513
Fitting length
n/a (see drawing legend A)
Industry
Industrial Manufacturing Equipment, Transportation, Off-road Machinery
Maximum operating pressure
42.0 MPa, 420 bar
Port type
SFS
Product series
Parkrimp Medium Pressure Fittings 48 Series
Region
EU
Shape
Elbow 90°
Specifications met
ISO 12151-3-E-S
Technology
Fluid & Gas Handling
Url
Flange size
n/a (see drawing legend F)
Configuration
Hose to Port
Product type
Hose Fittings
For fluid type
Hydraulic Fluids, Water, Air, Coolants (Water-Glycol), Mineral Hydraulic Oil
Product style
-
Hose inside diameter
-16
Port size
1-1/4"
No specifications found.
