SKU:B02E3FZN

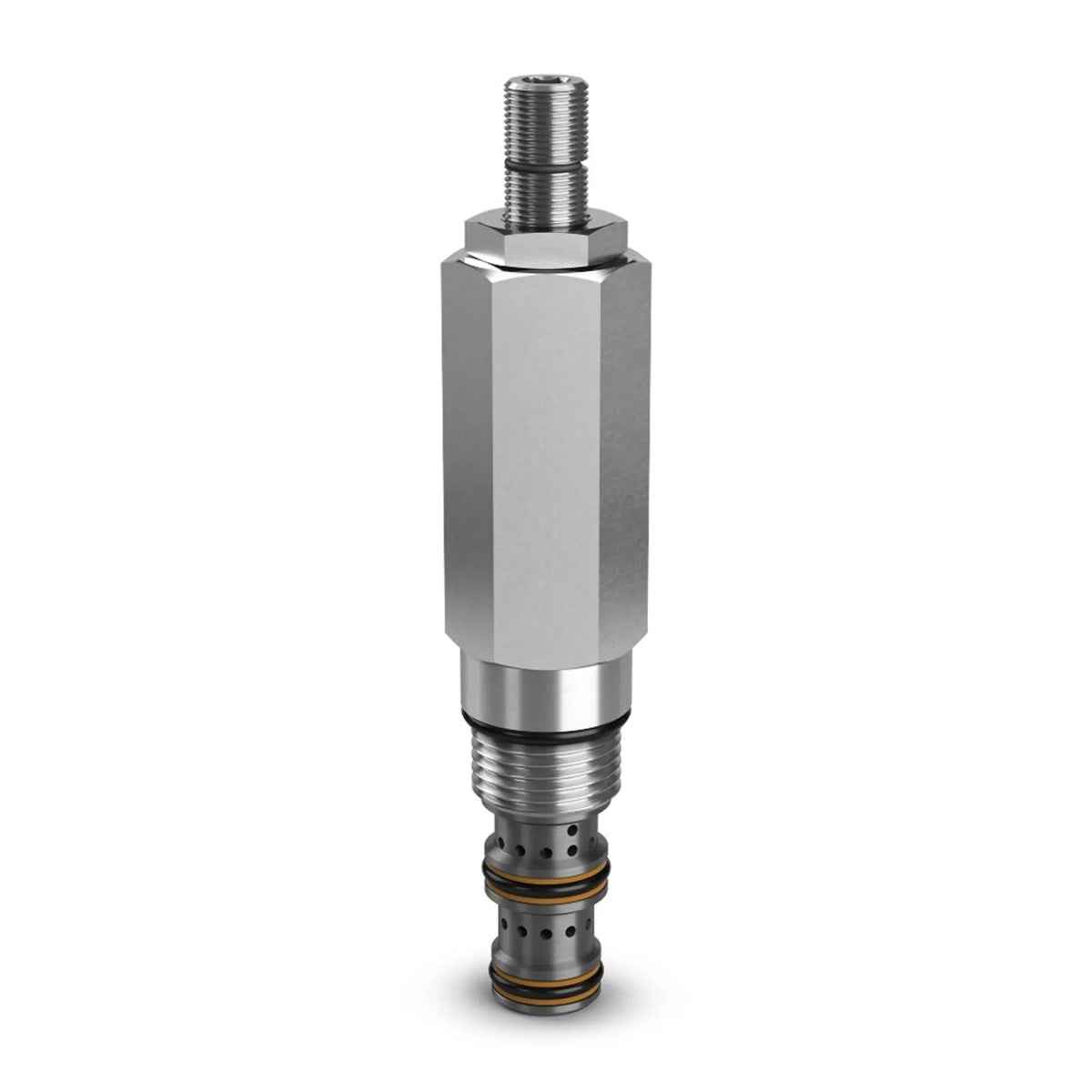

SEQUENCE VALVE
Availability
+ 143 days
Availability
Inventory
+ 143 days lead time
Express delivery in 1–2 business days is available for part of this quantity. For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Division
Hydraulic Valve Systems Division Europe
Division id
687505
Maximum operating pressure
420 bar, 6000 psi
Product series
Direct Acting Sequence Valves
Region
NA
Url
Drain option
Internal
Actuation type
Pressure Sensing
Configuration
Selector
Maximum flow rate
30 L/min, 8 gal/min
Maximum operating temperature
121 °C, 250 °F
Minimum operating temperature
-34 °C, -30 °F
Mounting type
Screw-in Cartridge
Operation type
Automatic
Seal material
Nitrile
Weight
0.21 kg, 0.46 lb
Adjustment mechanism
Screw
Flow rate
30 L/min, 8 gal/min
Function
Direct Acting Sequence
Operating temperature
-34 to 121 °C, -30 to 250 °F
For fluid type
Synthetic Hydraulic Fluids, Mineral-based Hydraulic Fluids
No specifications found.
