SKU:K02A3N

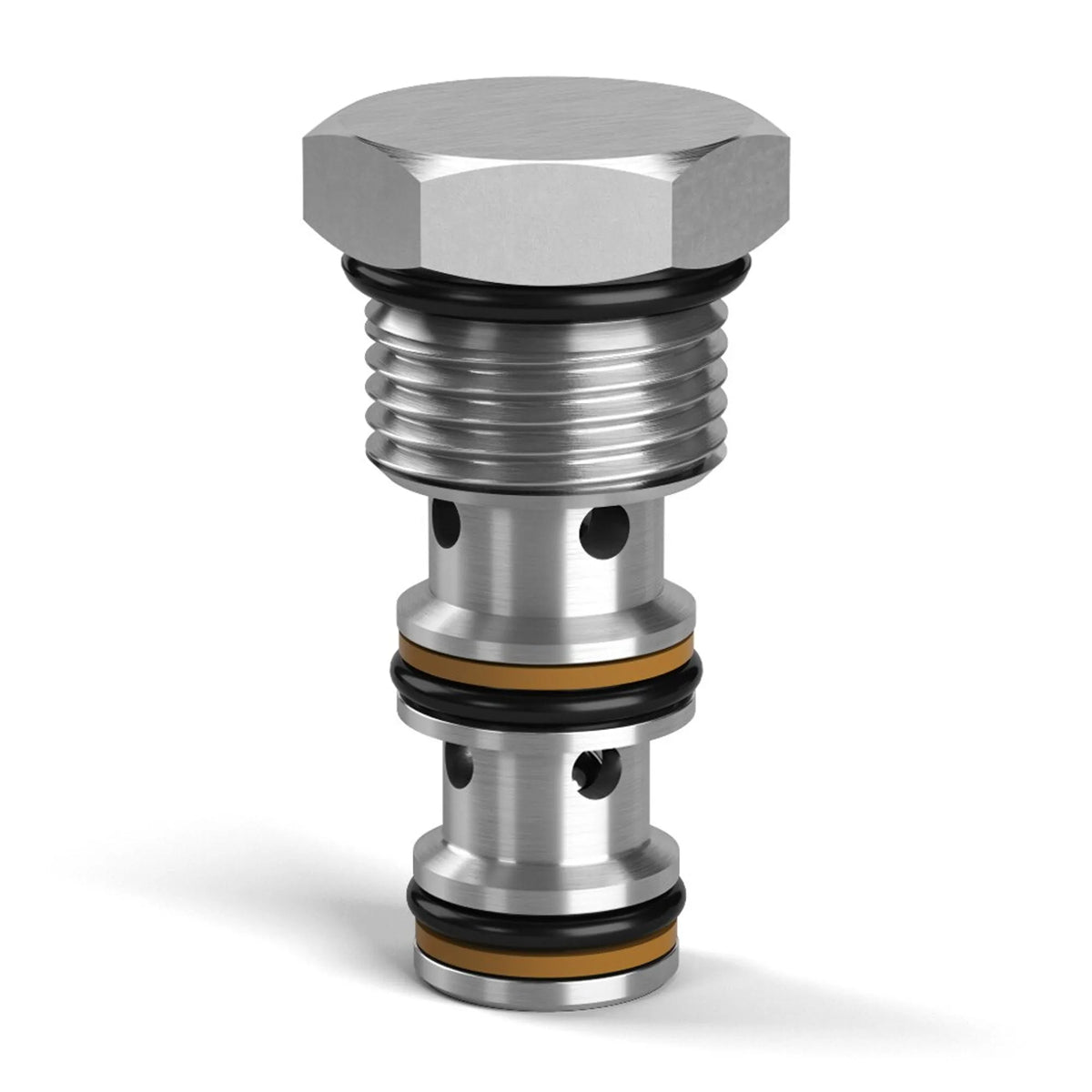

SHUTTLE VALVE
Availability
+ 3 days
Availability
Inventory
+ 3 days lead time
Express delivery in 1–2 business days is available for the entire quantity. For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Division
Hydraulic Valve Systems Division Europe
Division (facet only)
Hydraulic Valve Systems Division
Division id
687505
Maximum operating pressure
420 bar, 6000 psi
Product series
Cartridge Ball Type Shuttle Valve
Region
NA
Url
Actuation type
Pressure Sensing
Configuration
3-way Ball Type
Maximum flow rate
50 L/min, 13 gal/min
Maximum operating temperature
+121 °C, +250 °F
Minimum operating temperature
-34 °C, -30 °F
Operation type
Automatic
Seal material
Nitrile
Weight
0.07 kg, 0.15 lb
Flow rate
50 L/min, 13 gal/min
Function
Cartridge Ball Type, Diverter
Operating temperature
-34° to +121° °C, -34 to +121 °C, -30° to +250° °F, -30 to +250 °F
For fluid type
Mineral-based or synthetic hydraulic fluids
No specifications found.
