SKU:TDA032EW09B2NXW

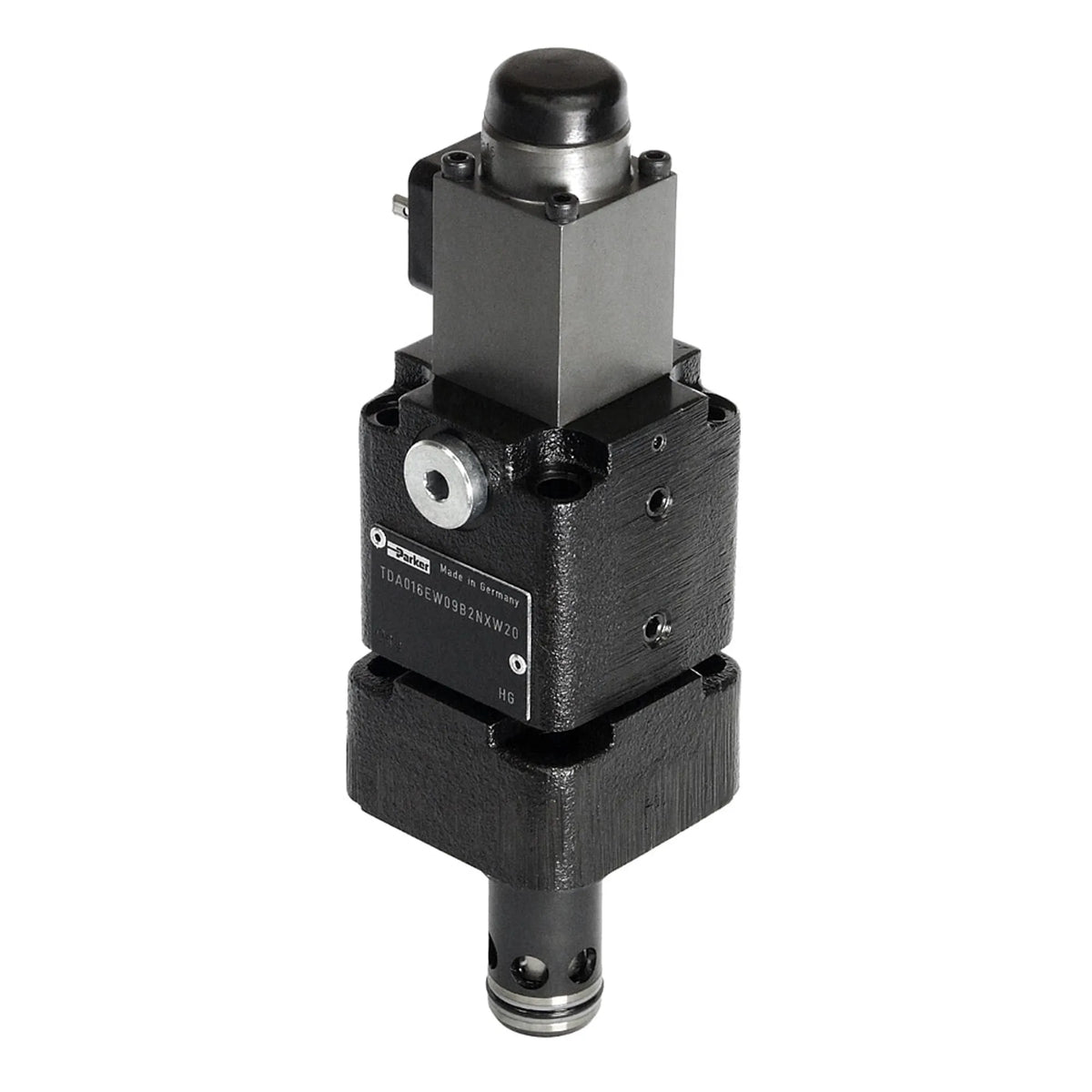

TDA032EW09B2NXW21 PROP. THROTTLE VALVE
Availability
+ 8 days
Availability
Inventory
+ 8 days lead time
Express delivery in 1–2 business days is available for part of this quantity. For more information, contact info@hydtec.com or call +46 304 400 400.
For lead time: Call the sales team tel. +46 304 400 400 or send an email to info@hydtec.com.
Couldn't load pickup availability
Technical specification
Technical specification
Body Material
Steel/Cast iron (cover)
Division (facet only)
Hydraulic Valve Systems Division Europe
Division id
687478
Maximum operating pressure
350 bar
Region
EU
Url
Actuation type
Proportional
Flow direction
B to A
Maximum flow rate
950 L/min
Maximum operating temperature
60 °C
Minimum operating temperature
-20 °C
Mounting type
Slip-in cartridge
Operation type
Pilot
Port connection
NG32
Seal material
NBR
Weight
5.8 kg
Flow rate
Nominal Flow
Function
2-way
Mounting position
Unrestricted
For fluid type
Hydraulic oil according to DIN 51524
