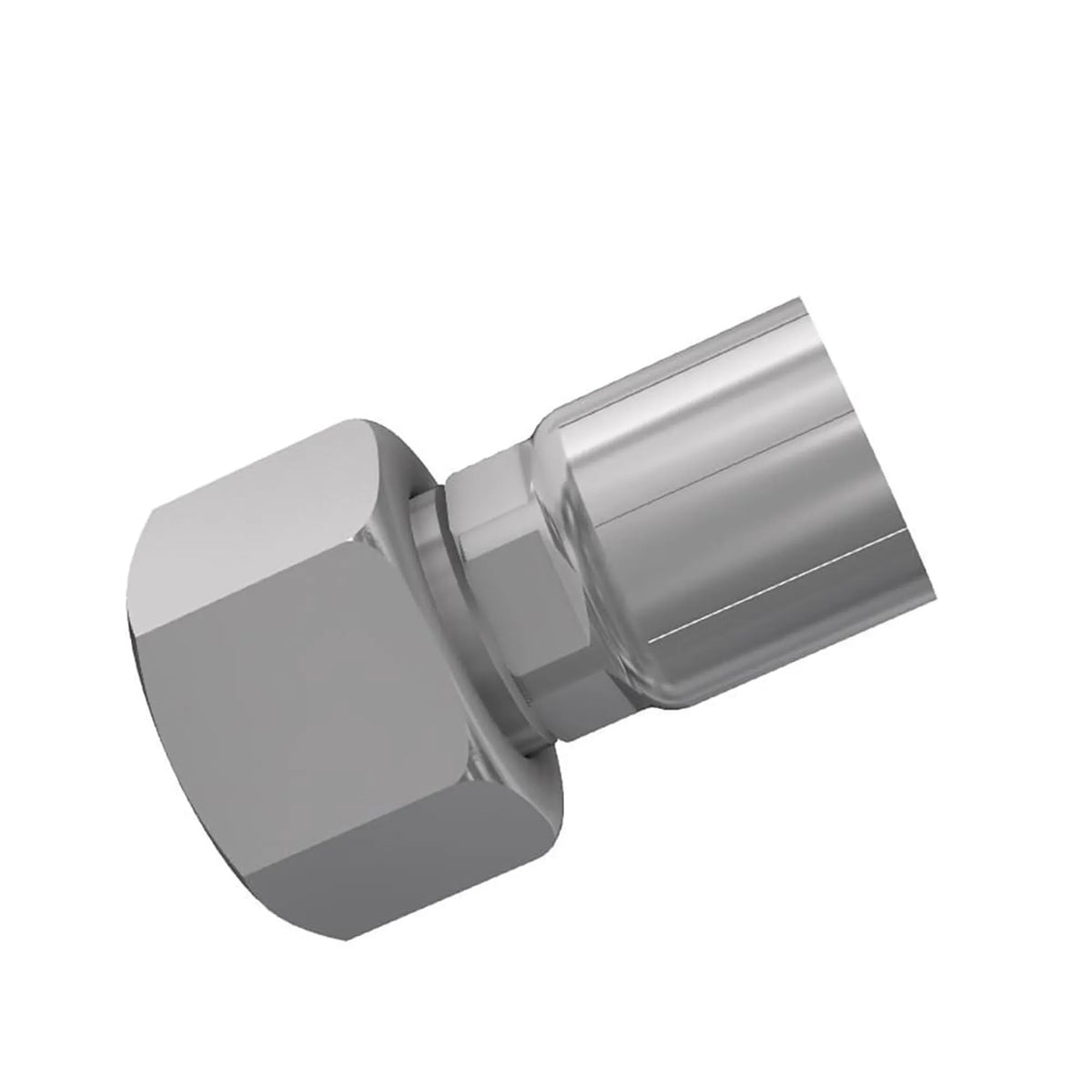

10648-8-6

10648-8-6

48 SERIES FEMALE JIC 37 DEG SWIVEL STRAIGHT

Teknisk specifikation
Application
Hydraulics
Body Material
Steel
Brand
Parker
Coating
Zinc-nickel
Connection 1 size
9.5 mm Hose I.D., 3/8 inch Hose I.D., -6 (Size)
Connection 1 type
Hose
Connection 2 size
3/4"-16 inch Thread
Connection 2 type
Female, JIC 37°, Swivel
Connection length
30 mm (see drawing legend B)
Division
Polymer Hose Division Europe
Division (facet only)
Polymer Hose Division Europe
Division id
687513
Fitting length
52 mm (see drawing legend A)
Hex size 1
22 mm (see drawing legend W)
Hex size 2
17 mm (see drawing legend H)
Industry
Industrial Manufacturing Equipment, Transportation, Off-road Machinery
Maximum operating pressure
35.0 MPa, 350 bar
Port type
DKJ
Product series
Parkrimp Medium Pressure Fittings 48 Series
Region
EU
Shape
Straight
Specifications met
ISO 12151-5-SWS
Technology
Fluid & Gas Handling
Url
URL
Configuration
Hose to Port
Product type
Hose Fittings
For fluid type
Hydraulic Fluids, Water, Air, Coolants (Water-Glycol), Mineral Hydraulic Oil
Product style
-
Hose inside diameter
-6
Port size
3/4"
