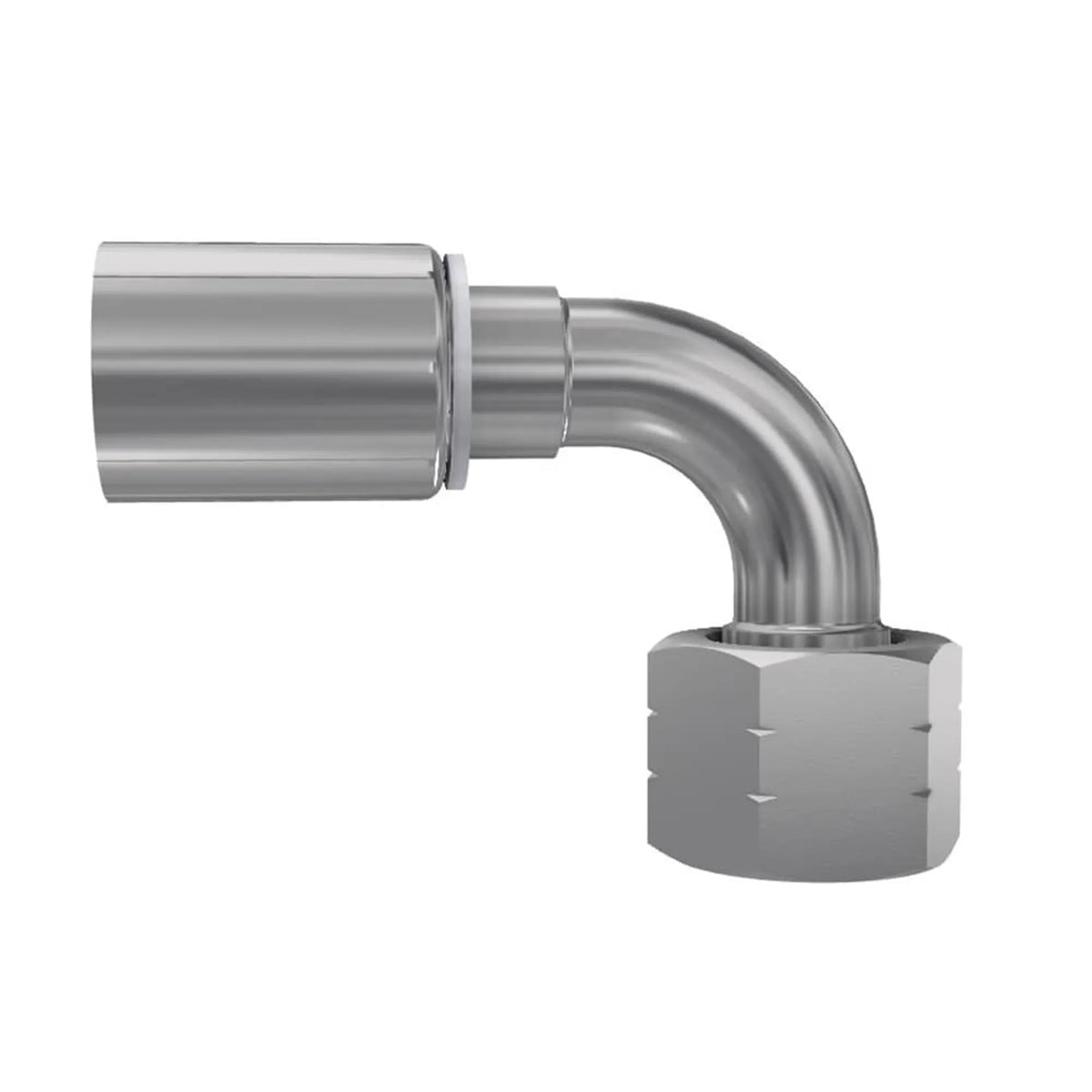

1EC48-4-6

1EC48-4-6

BSP Swivel Female with O-ring - 90 Elbow

Teknisk specifikation
Application
Hydraulics
Body Material
Steel
Brand
Parker
Coating
Chromium 6 Free-plated
Connection 1 size
9.5 mm Hose I.D., 3/8 inch Hose I.D., -6 (Size)
Connection 1 type
Hose
Connection 2 size
1/4"-19 inch Thread
Connection 2 type
Female, 60° Cone, Swivel, BSP Parallel Pipe
Connection length
37 mm (see drawing legend B)
Division
Polymer Hose Division Europe
Division (facet only)
Polymer Hose Division Europe
Division id
687513
Fitting length
n/a (see drawing legend A)
Industry
Industrial Manufacturing Equipment, Transportation, Off-road Machinery
Maximum operating pressure
45.0 MPa, 450 bar
Port type
DKOR
Product series
Parkrimp Medium Pressure Fittings 48 Series
Region
EU
Shape
Elbow 90°
Specifications met
BS 5200, ISO 12151-6
Technology
Fluid & Gas Handling
Url
URL
Configuration
Hose to Port
Product type
Hose Fittings
For fluid type
Hydraulic Fluids, Water, Air, Coolants (Water-Glycol), Mineral Hydraulic Oil
Product style
-
Hose inside diameter
-6
Port size
1/4"
